- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDS-3118W
- Packaged Quantity
- 1
- Product Type
- Open-frame LCD Touchscreen Monitor

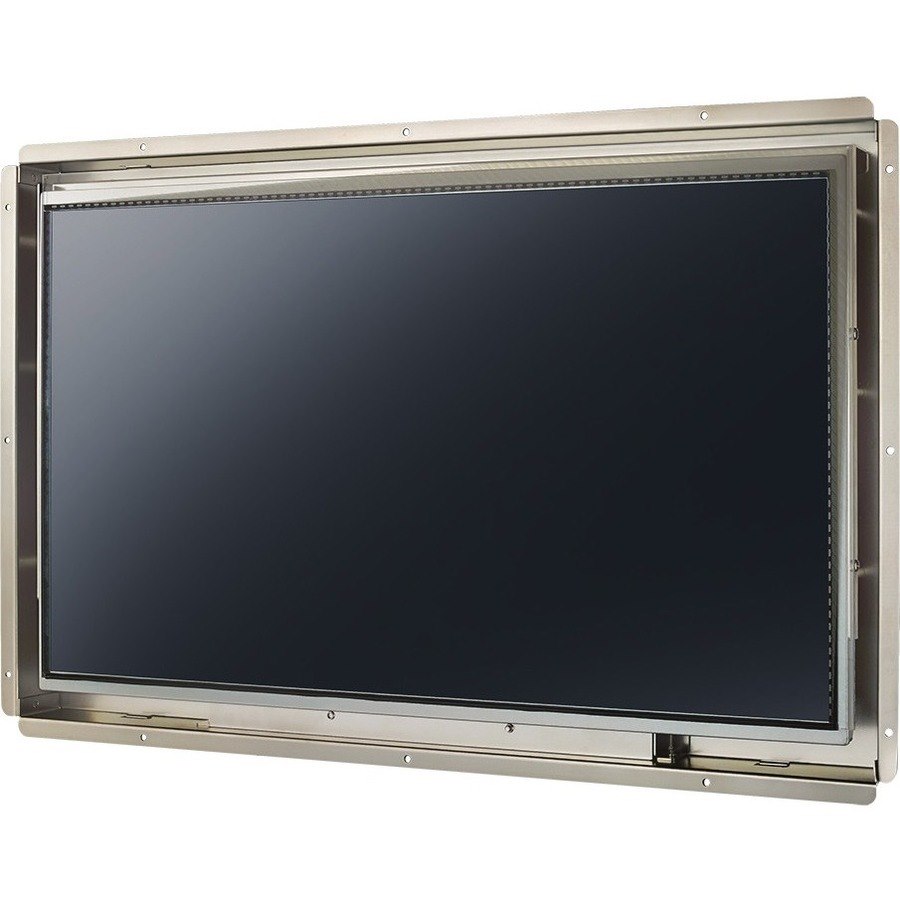

Introduction
The Advantech IDS-3118W Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Screen Size Class
- 19"
- Viewable Screen Size
- 18.5"
- Screen Mode
- WXGA
- Response Time
- 5 ms
- Mount Type
- Rear Mount
- Backlight Technology
- LED
- Video
- Maximum Resolution
- 1366 x 768
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 300 Nit
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive

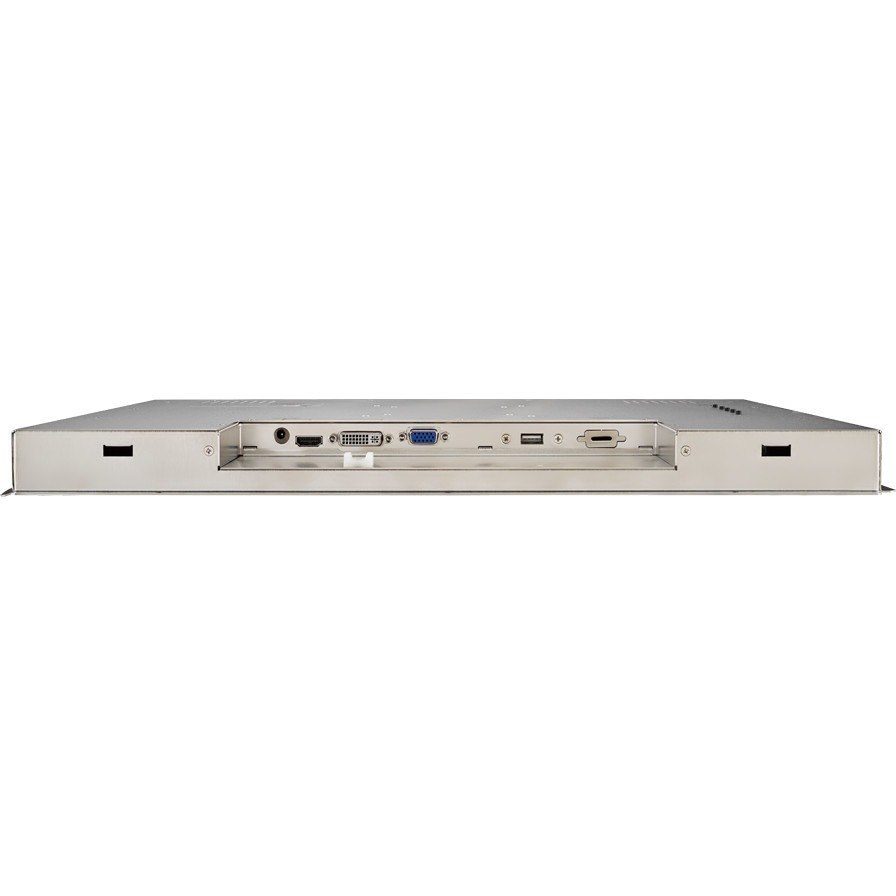

- Interfaces/Ports
- DVI
- Yes
- HDMI
- Yes
- USB
- Yes
- VGA
- Yes
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 100 x 100
- Height
- 12"
- Width
- 18.8"
- Depth
- 1.4"
- Weight (Approximate)
- 10.36 lb
- Miscellaneous
- Package Contents
- 18.5" HD Open Frame Monitor
- 1 x M Cable USB-A(M)/USB-A(M) 180CM
- 1 x VGA Cable 15P(M) 1.8 meter
- 8 x Clamper
- 8 x Screw of Clamper M4_25L
- 1 x Cable Clamp
- 1 x Screw of Cable Clamp
- 1 x Cable Tie
- USB cable
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
