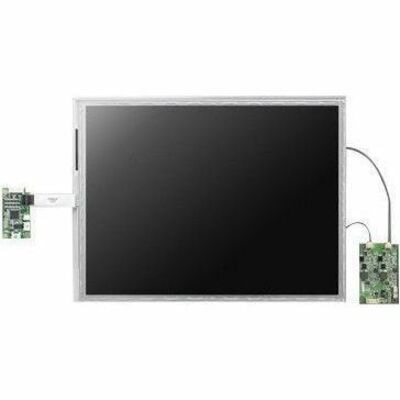

The Advantech IDK-2119 series comes with a 19" 1200 cd/m2 industrial grade LCD display, and an LED driver board. The series is also available with flexible options for touch screens and enhanced treatment such as AR surface treatment and optical bonding solution. IDK-2119 series supports 1200 cd/m2 high brightness with low power consumption at the maximum consumption of 35.42 W. Equipped with high level of brightness and wide operating temperature, IDK-2119 provides superior sunlight readability and is perfect for applications whether in semi-outdoor or outdoor environments.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDK-2119
- Product Type
- LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 19"
- Viewable Screen Size
- 19"
- Screen Mode
- SXGA
- Response Time
- 5 ms
- Horizontal Viewing Angle
- 160°
- Vertical Viewing Angle
- 170°
- Backlight Technology
- LED
- Glass Hardness
- 3H
- Video
- Maximum Resolution
- 1280 x 1024
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 1200 Nit
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive
- Interfaces/Ports
- USB
- Yes
- Environmental Conditions
- Operating Temperature Range
- 32°F (0°C) to 122°F (50°C)
- Operating Humidity Range
- 5% to 95% (Non-condensing)
- Power Description
- Maximum Power Consumption
- 35.42 W
- Physical Characteristics
- Height
- 12.8"
- Width
- 15.6"
- Depth
- 0.9"
- Weight (Approximate)
- 6.09 lb
- Miscellaneous
- Package Contents
- 19" 1,200 cd/m2 Ultra High Brightness Industrial Display Kit with LED B/L
- 1 x 5-wire USB touch controller
- 1 x USB cable for Touch controller
- Country of Origin
- Taiwan
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
