- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Marketing Information

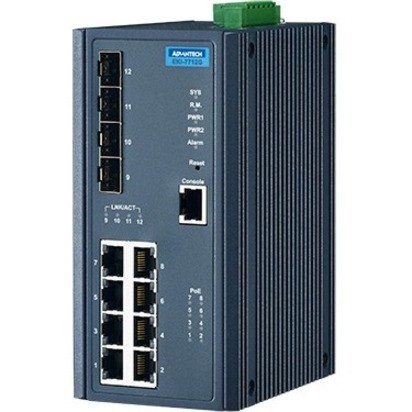

- EKI-7712G-4FP/4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 5 Year
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Uplink Port
- No
- Modular
- Yes
- Stack Port
- No
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- I/O Expansions
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Management & Protocols
- Manageable
- Yes
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 6"
- Width
- 2.9"
- Depth
- 4.1"
- Weight (Approximate)
- 2.43 lb
- Miscellaneous
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
