- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Type
- Bypass Panel

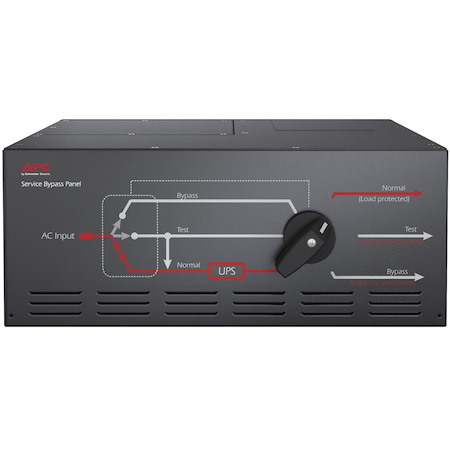

The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years (parts only)
- Technical Information
- Plug/Connector Type
- Hard Wire 3-wire
- Hard Wire 5-wire
- Receptacles
- 1 x Hard Wire 3-wire (H+N+E)
- 1 x Hard Wire 3-wire (2PH + G)
- Protection Type
- Overload
- Power Description
- Load Capacity (VA)
- 20 kW
- Input Voltage
- 415 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- 380 V AC
- 400 V AC
- Output Voltage
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Current
- 125 A
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Mounting Location
- Front
- Mounting Preference
- Lower
- Rack Height
- 4U
- Height
- 7"
- Width
- 17"
- Depth
- 21.8"
- Weight (Approximate)
- 42.59 lb
- Miscellaneous
- For Country/Region
- United States
- Package Contents
- SBP20KP Bypass Panel
- Installation guide
- Rack mounting brackets
- User manual
- Additional Information
- Number of Power Cords: 1
- Load Power Factor Range: 0 to 1
- Compatibility
APC Smart-UPS
- Certifications & Standards
- CSA|GOST
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SBP20KP_ROHS_DECLARATION&p_FileName=SBP20KPKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035285&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035285&lang=en-us
- REACH free of SVHC
- Yes
- Toxic Heavy Metal Free
- Yes
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
