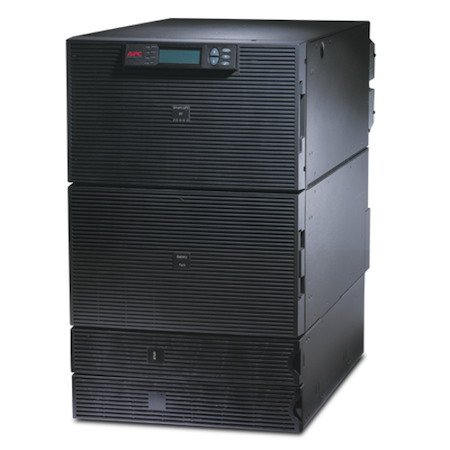

APC Smart-UPS RT 20kVA, 208V, LCD, rackmount, 16U, 2x L5-20R & 4x L6-20R & 2x L6-30R & 2x L14-30R NEMA outlets, w/transfo 208V to 120V

Part: 3079416
Model: SURT20KRMXLT-1TF10K

APC Smart-UPS RT 20kVA, 208V, LCD, rackmount, 16U, 2x L5-20R & 4x L6-20R & 2x L6-30R & 2x L14-30R NEMA outlets, w/transfo 208V to 120V

$27,100.00

Availability

Out of Stock

General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Series
- RT
- Product Type
- Double Conversion Online UPS

High density, double-conversion on-line power protection with scalable runtime

More from the Manufacturer

Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years repair or replace

Technical Information
- Plug/Connector Type
- Hard Wire 3-wire
- Receptacle Type
- Hard Wire 4-wire (2PH+N+G)
- NEMA L5-20R
- NEMA L6-20R
- NEMA L6-30R
- NEMA L14-30R
- Receptacle Detail
- 1 x Hard Wire 4-wire (2PH+N+G)
- 2 x NEMA L5-20R
- 4 x NEMA L6-20R
- 2 x NEMA L6-30R
- 2 x NEMA L14-30R
- Number of Battery & Surge Outlets
- 11
- Overload Protection
- Yes

Power Description
- Load Capacity (VA)
- 20 kVA
- Input Voltage
- 208 V AC
- Output Voltage
- 120 V AC
- 208 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Input Current
- 105 A
- Waveform Type
- Sine Wave

Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Static
- Internal
- Automatic & Manual
- External (Optional)
- Emergency Power OFF
- Yes

Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes

Battery Information
- Battery Characteristics
- Spill-proof/Maintenance-free
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 4.90 Minute
- Backup/Run Time (Half Load)
- 15.30 Minute
- Typical Battery Recharge Time
- 2.50 Hour

Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 16U
- Mounting Location
- Front
- Mounting Preference
- Lower
- Height
- 27.9"
- Width
- 17"
- Depth
- 30.4"
- Weight (Approximate)
- 766.61 lb

Miscellaneous
- For Country/Region
- United States
- Package Contents
- - Smart-UPS RT 20kVA Tower/Rack Mountable UPS
  - CD with software
  - Rack mounting support rails
  - Smart UPS signalling RS-232 cable
  - User manual
  - Web/SNMP management card
- Certifications & Standards
- Reference contains Substances of Very High Concern above the threshold
- Software Included
- PowerChute Management Software
- Product Take Back Program
- No
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT1TF10K_ROHS_DECLARATION&p_FileName=SURT20KRMXLT1TF10KKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567070057&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567070057&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2304008_V1
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2304008_V1
- REACH free of SVHC
- No
- Country of Origin
- Philippines
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
