- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Product Series
- PE0212
- Packaged Quantity
- 1
- Product Type
- PDU

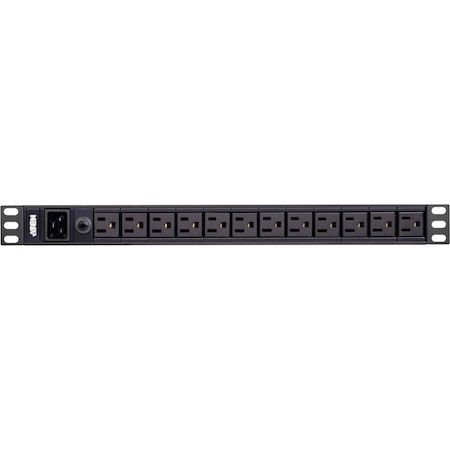

The PE0212 series Basic PDU contains 12 AC outlets and is available in IEC or NEMA socket configurations. The PE0212 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a more use of space in the server room, while providing 12 AC outlets.
- Technical Information
- PDU Type
- Basic
- Plug/Connector Type
- NEMA L5-20P
- NEMA 5-20P
- Receptacle Type
- NEMA 5-20R
- Receptacle Detail
- 12 x NEMA 5-20R
- Protection Type
- Overcurrent Protection
- Power Description
- Input Voltage
- 120 V AC
- Input Voltage Range
- 100 V AC - 120 V AC
- Output Voltage
- 120 V AC
- Power Rating (VA)
- 2400 VA
- Input Current
- 20 A
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 1U
- Height
- 1.8"
- Width
- 1.7"
- Length
- 19.2"
- Weight (Approximate)
- 1.94 lb
- Miscellaneous
- Package Contents
- PE0212 12-Outlet PDU
- 1 x Power Cord
- 1 x User Instructions
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
