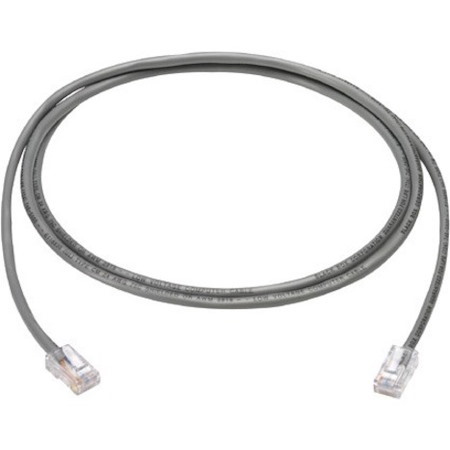

Straight-Pinning, ETNMRS01:
RJ-48C - RJ-48C
1-1 Orange/White
2-2 White/Orange
3-3 NC
4-4 Blue/White
5-5 White/Blue
6-6 NC
7-7 NC
8-8 NC
Cross-Pinning, ETNMR01:
RJ-48C - RJ-48C
1-4 Orange/White
2-5 White/Orange
3-3 NC
4-1 Blue/White
5-2 White/Blue
6-6 NC
7-7 NC
8-8 NC
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Type
- Video Cable
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Cable Type
- DB-15
- Cable Length
- 5 ft
- Connector Type on First End
- DB-15 Video - Male
- Connector on First End Details
- 1 x 15-pin DB-15 Video - Male
- Connector Type on Second End
- DB-15 Video - Male
- Connector on Second End Details
- 1 x 15-pin DB-15 Video - Male
- Shielding
- Yes
- Device Supported
- Video Device
- American Wire Gauge
- 24 AWG
- Physical Characteristics
- Product Color
- Gray
- Miscellaneous
- Certifications & Standards
- GS
- Environmentally Friendly
- Yes
- Country of Origin
- United States
- TAA Compliant
- Yes
