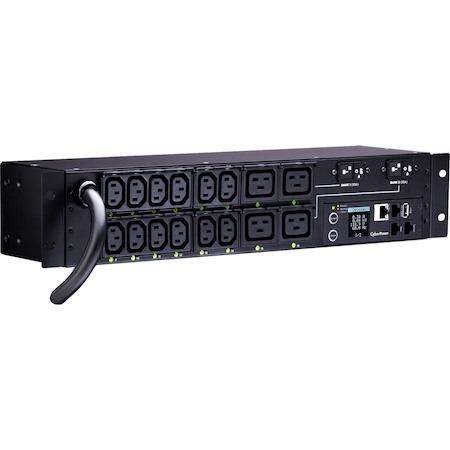

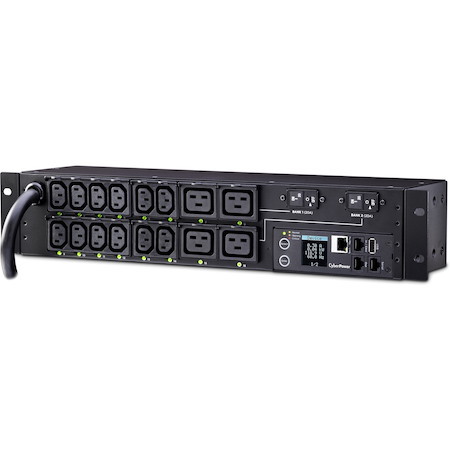

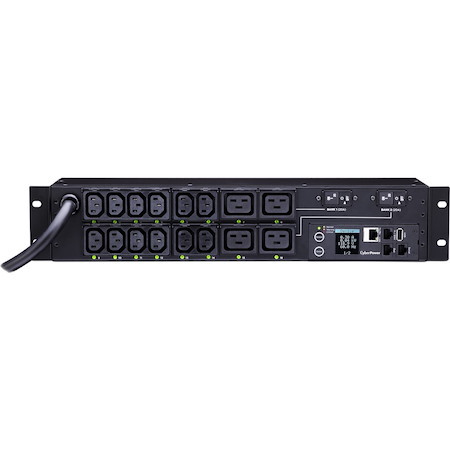

The CyberPower PDU41008, a 16-outlet (front), 2U rackmount switched power distribution unit (PDU), provides 200-240V 30A output. It distributes power to twelve (12) IEC C13 receptacles and four (4) IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Switched PDU
- Product Type
- PDU
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Switched
- Phase
- Single Phase
- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 12 x IEC 60320 C13
- 4 x IEC 60320 C19
- Protection Type
- Overload Protection
- Locking Receptacles
- Cord Retention Tray
- Features
- LED Status Indicator
- LCD Display
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage
- 200 V AC
- 240 V AC
- Output Voltage Range
- 200 V AC - 240 V AC
- Input Current
- 30 A
- Input Frequency
- 60 Hz
- Management
- Management
- Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
- Remote Outlet Switching
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Horizontal
- Mount Type
- Rack-mountable
- Wall-mountable
- Form Factor
- Horizontal/Vertical
- Rack Height
- 2U
- Cord Length
- 12 ft
- Height
- 3.5"
- Width
- 17.1"
- Depth
- 4.4"
- Weight (Approximate)
- 9.90 lb
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Storage Temperature
- 5°F (-15°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Miscellaneous
- Package Contents
- PDU41008
- 2 x Mounting Brackets
- 12 x M4x8 Bracket Mounting Screws
- 6 x M5x12 Rack Mounting Screws and Washers
- 2 x Cord Retention Trays
- 12 x M3x6 Cord Retention Tray Screws
- 24 x Cable Ties
- RJ45/DB9 Serial Port Connection Cable
- User Manual
- Registration Card
- Download Card
- Application/Usage
- Network Device
- Data Center
- Certifications & Standards
- UL62368
- FCC Class A
- ICES-003: Issue 7
- Energy Star
- No
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
