- General Information
- Manufacturer
- Digi International
- Manufacturer Website Address
- http://www.digi.com
- Brand Name
- Digi
- Product Line
- Connect EZ 4i
- Packaged Quantity
- 1 Pack
- Product Type
- Device Server
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
Technical support: 1-year LifeCycle Assurance with 24x7 Expert Support included
- Technical Information
- Connectivity Technology
- Wired
- Data Link Protocols
- HTTP
- HTTPS
- Memory
- Standard Memory
- 512 MB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Wireless Specifications
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11a/b/g/n/ac
- ISM Band
- Yes
- UNII Band
- Yes
- Network Band
- Dual Band
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 10/100/1000Base-T
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Serial Port
- Yes
- Total Number of Network Ports
- 2
- Number of Network (RJ-45) Ports
- 2
- Number of Serial Ports
- 4
- Environmental Conditions
- Minimum Operating Temperature
- -31°F (-35°C)
- Maximum Operating Temperature
- 165.2°F (74°C)
- Power Description
- Input Voltage
- 9 V DC
- 30 V DC
- Input Voltage Range
- 9 V DC to 30 V DC
- Power Consumption
- 4.50 W
- Input Current
- 1.50 A
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Height
- 1.4"
- Width
- 5.3"
- Depth
- 7.6"
- Miscellaneous
- Package Contents

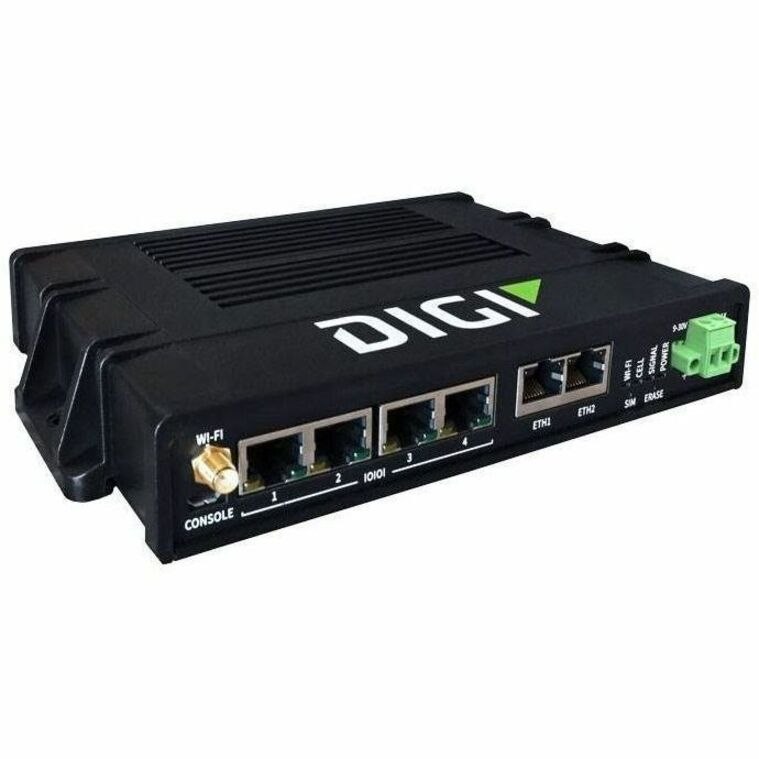

- Connect EZ 4i - Serial Server, 4-port, Industrial-rated, with Wi-Fi and Accessories
- 2-position Rewireable Plug with Securing Screws
- Antenna - 2.4 and 5 GHz
- Power Supply - 12 V, 2.5 A
- DIN Rail Clip
- Certifications & Standards
- IEC62368-1
- CB, EN62311
- Industrial certification: Class 1, Division 2
- IEC 60068-2-64
- 60068-2-27
- CE
- RED
- FCC Part 15
- Subpart B; ICES-003; AU/NZS CISPR32
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 3
- Restriction of Hazardous Substances (RoHS)
