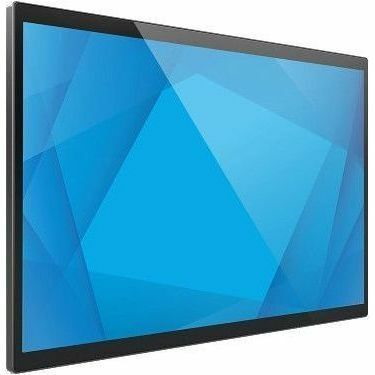

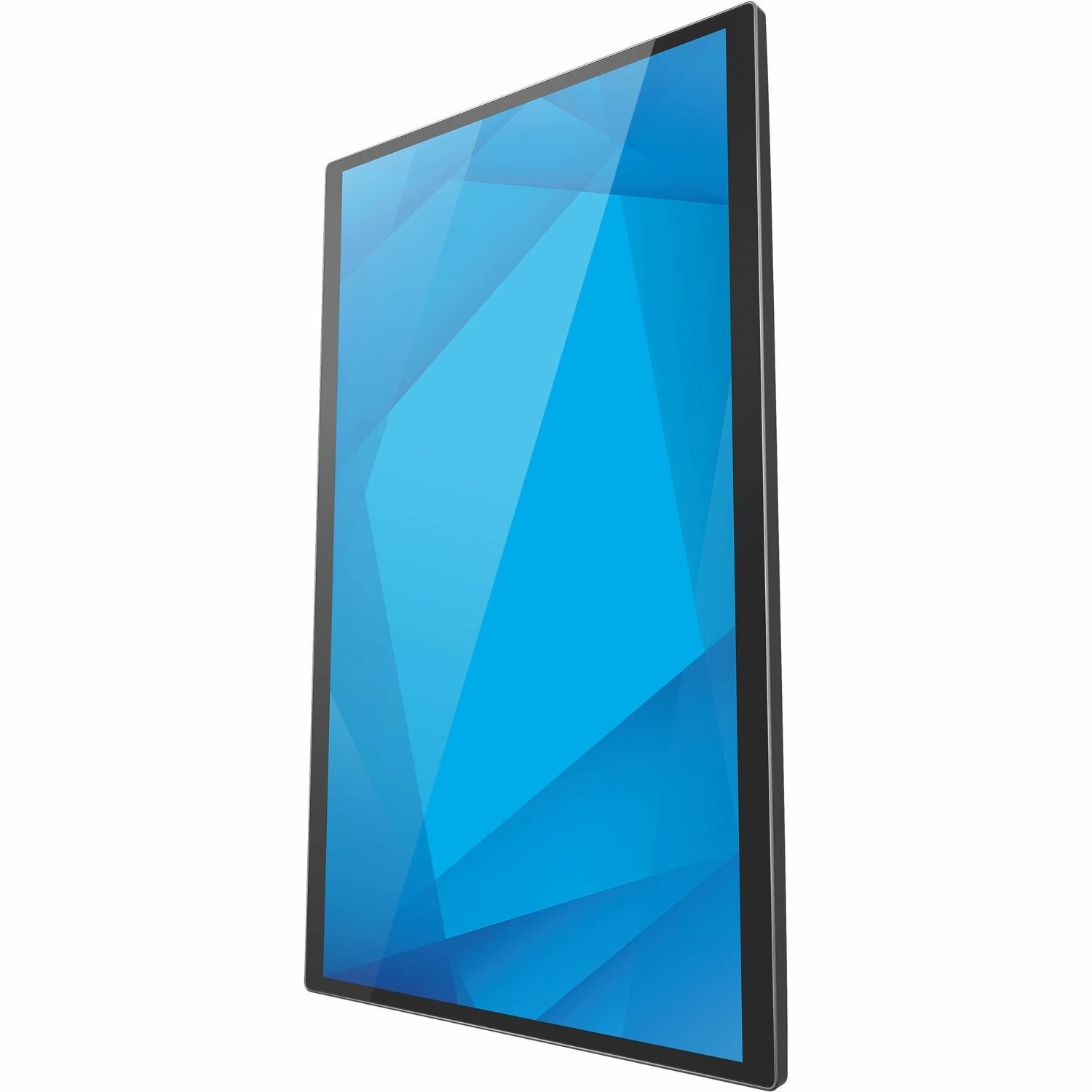

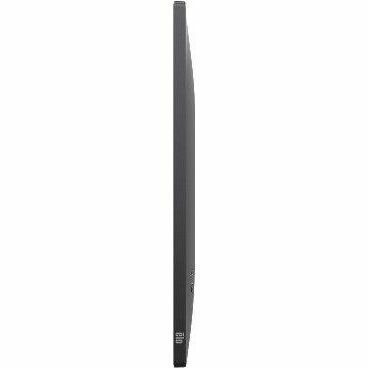

Razor thin design. Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 15-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.
Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
A clean slate for touch experiences. The perfect pairing for your POS terminal.
Whether you want to pair the 1504LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.
Get peace of mind with EloCare.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
- General Information
- Manufacturer
- Elo Touch Solutions, Inc
- Manufacturer Website Address
- http://www.elotouch.com
- Brand Name
- Elo
- Product Series
- 04LS
- Product Type
- LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 15"
- Viewable Screen Size
- 15.6"
- Screen Mode
- Full HD
- Panel Technology
- Thin Film Transistor (TFT)
- Response Time
- 20 ms
- Response Time Details
- 20 ms Typical
- Aspect Ratio
- 16:9
- Horizontal Viewing Angle
- 170°
- Vertical Viewing Angle
- 170°
- Mount Type
- Wall Mountable
- Backlight Technology
- LED
- Features
- On-screen Display (OSD)
- Color Temperature Selection
- Low Blue Light
- Auto Power Off
- Impact Protection (IK) Rating
- IK07
- Active Display Area (H x V)
- 13.55" x 7.62"
- Surface Treatment
- Anti-glare
- Video
- Maximum Resolution
- 1920 x 1080
- Color Supported
- 16.2 Million Colors
- Native Contrast Ratio
- 1,000:1
- Brightness
- 350 Nit
- Audio
- Speakers
- Yes
- Touchscreen Information
- Touchscreen Type
- Projected Capacitive
- Multi-touch Screen
- Yes
- Number of Simultaneous Touchpoints
- 10
- Interfaces/Ports
- USB
- Yes
- USB Type-C
- Yes
- Environmental Conditions
- Operating Temperature Range
- 32°F (0°C) to 104°F (40°C)
- Operating Humidity Range
- 20% to 80% (Non-condensing)
- Physical Characteristics

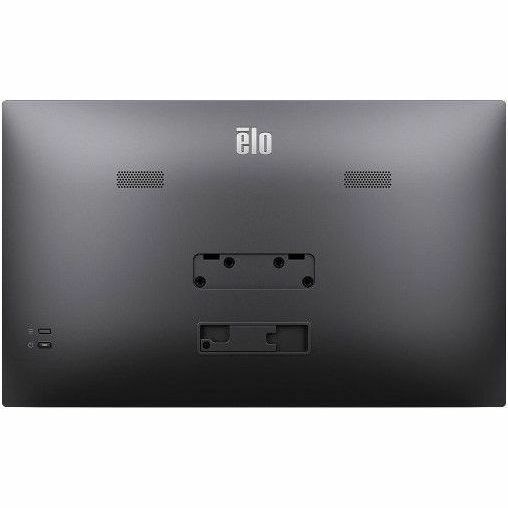

- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 75 x 75
- Color Family
- Gray
- Product Color
- Dark Gray Metallic
- Height
- 8.6"
- Width
- 14.2"
- Depth
- 0.6"
- Weight (Approximate)
- 2.45 lb
- Miscellaneous
- Application/Usage
- Commercial
- Point of Sale (POS)
