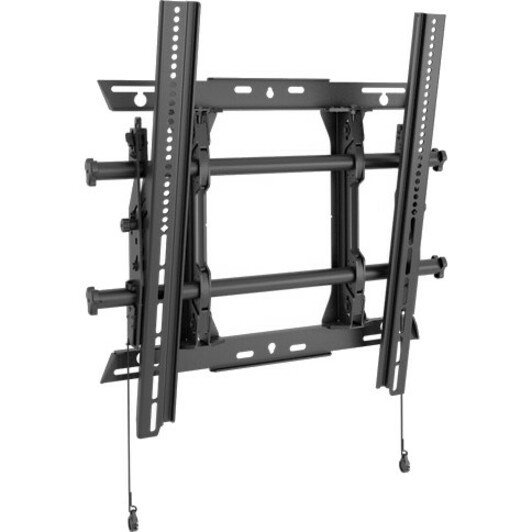

The Chief Fusion micro-adjustable tilt display wall mount solves top flat panel installation problems, offering flexible adjustments for extra large displays with a low-profile display mounting solution and includes new benefits of added stability, faster install, improved lateral shift, easier cable management and enhanced security. The integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall and Control Zone Leveling for post-installation fine tuning of height and leveling. Feel confident in your installation with Chief's ClickConnect technology that offers an audible click when the screen safely engages with the mount and set screws to keep the mount rigid, stable and secure throughout the life of installation. Built in cable stand provides easy access under the screen.
- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- Chief
- Product Line
- Fusion Wall Tilt
- Product Type
- Wall Mount
- Warranty
- Limited Warranty
- 10 Year
- Product Information
- Device Supported
- Flat Panel Display
- Number of Displays Supported
- 1
- Maximum Load Capacity
- 200 lb
- Minimum Screen Size Supported
- 43"
- Maximum Screen Size Supported
- 47"
- Features
- Tilt
- Leveling System
- Lateral Adjustment
- Flexible
- Cable Management
- Mount Profile
- Low Profile
- Height Adjustable
- Yes
- Physical Characteristics
- Product Color
- Black
- Height
- 24.50"
- Width
- 20.88"
- Depth
- 3.20"
- Miscellaneous
- Package Contents
- Medium Fusion Portrait Tilt Wall Mount
- Hardware Kit
- Application/Usage
- Wall
- Additional Information
- Mounting pattern compatibility (universal versions): 100 x 100 mm - 570 x 600 mm
- Certifications & Standards
- UL Listed
- Country of Origin
- China
