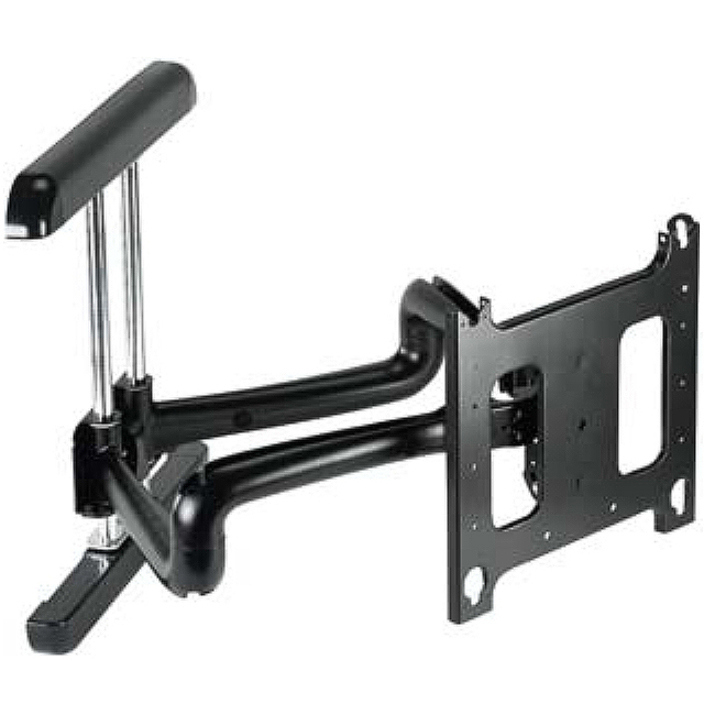

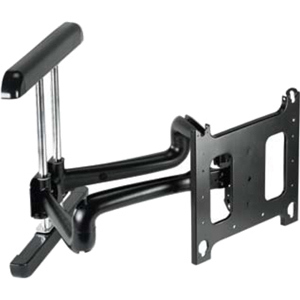

The Chief flat panel swing arm wall display mount allows for perfect flat panel display placement and extends up to 37" for viewing from any angle while remaining low-profile in home position. The screen can be adjusted effortlessly with just the touch of a finger tip thanks to Chief's Centris technology. With built in cable management channels, your cables will be hidden allowing for a clean, professional look.
- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- Chief
- Product Series
- PDR
- Product Type
- Wall Mount
- Warranty
- Limited Warranty
- 10 Year
- Product Information
- Device Supported
- Flat Panel Display
- Maximum Load Capacity
- 200 lb
- Minimum Screen Size Supported
- 42"
- Maximum Screen Size Supported
- 86"
- Maximum Adjustable Height
- 1"
- Features
- Tilt
- Swivel
- Height Adjustable
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 22.04"
- Width
- 39.50"
- Depth
- 3.40"
- Miscellaneous
- Package Contents
- PDRU Universal Flat Panel Dual Swing Arm Wall Mount
- Mounting Hardware
- Additional Information
- Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- CableTrac System provides built-in cable management channels inside the arms for a clean installation
- Depth From Wall: 3.4" (86 mm)
- Extension: 37" (940 mm)
- Tilt/Roll: +5º, -17º / ±2.5º
- Swivel: up to 90° left/right
- Lateral Shift: up to 9" (229 mm)
- Mounts on Studs: 16"
- Channel Size Width Each Arm: 0.63"
- Compatibility
- Flat Panel Display
- Recycled
- Yes
- Post-consumer-waste%
- 30%
- Country of Origin
- China
