Protection For Mission-critical Applications
The Minuteman® EndeavorTM 5-10kVA Series UPS combines transient free pure sine wave output, extended runtime capability, and redundant or parallel configurations for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication.
- General Information
- Manufacturer
- Para Systems, Inc
- Manufacturer Website Address
- http://www.minutemanups.com
- Brand Name
- Minuteman
- Product Line
- Endeavor
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- NEMA L6-30R
- NEMA L6-20R
- NEMA 5-15/20R

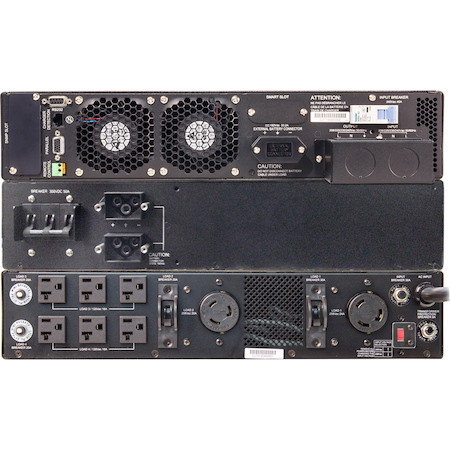

- Receptacle Detail
- 1 x NEMA L6-30R
- 1 x NEMA L6-20R
- 8 x NEMA 5-15/20R
- Overload Protection
- Yes
- Power Description
- Load Capacity (VA)
- 8000 VA
- Input Voltage
- 208 V AC
- Output Voltage
- 208 V AC
- 212 V AC
- 120 V AC
- Input Frequency
- 70 Hz
- Output Frequency
- 60 Hz
- Management
- Network Management
- SNMP Manageable
- Bypass Switch
- Internal
- Automatic
- Interfaces/Ports
- Serial Port
- Yes
- Modular Slots
- 1 x Communications Slot
- Battery Information
- Backup/Run Time (Full Load)
- 8.20 Minute
- Backup/Run Time (Half Load)
- 14.90 Minute
- Physical Characteristics
- Form Factor
- Rack/Tower
- Rack Height
- 6U
- Height
- 15.4"
- Width
- 17.3"
- Depth
- 26.2"
- Miscellaneous
- Package Contents

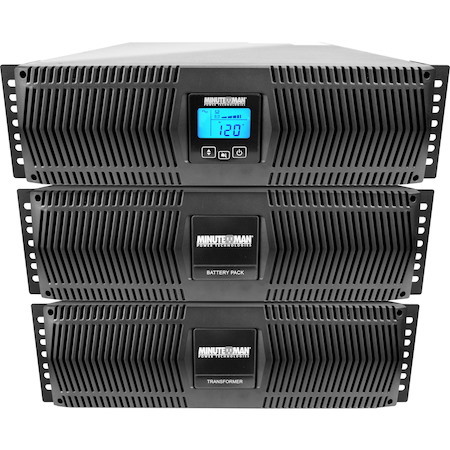

- Endeavor ED8000RTXL5TF 8000VA Rack/Tower UPS
- Rail Kit
- Foot Brackets
- 1 x Battery Pack
- Isolation Stepdown Transformer
- Software Included
- SentryHD
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
