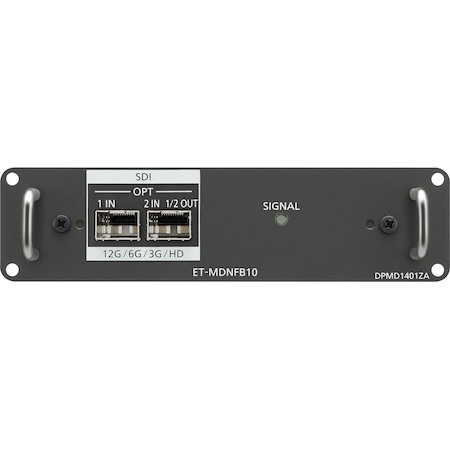

Panasonic ET-MDNFB10 Projector Terminal Expansion Board

  • Part: 1105100
  • Model: ETMDNFB10
$1,695.00

Availability

Out of Stock
  • General Information
    • Manufacturer
    • Panasonic
    • Manufacturer Website Address
    • http://www.panasonic.com
    • Brand Name
    • Panasonic
    • Product Type
    • Projector Terminal Expansion Board

This is an input board for mounting to the applicable projector, and it allows input of two 12G-SDI optical signals systems.

  • I/O Expansions
    • Number of Expansion Slots
    • 2
  • Physical Characteristics
    • Height
    • 1.5"
    • Width
    • 5.9"
    • Depth
    • 5.6"
    • Weight (Approximate)
    • 12.70 oz
  • Miscellaneous
    • Compatibility
      • PT-RQ22K
      • PT-RQ50K , PT-RCQ10, PT-RCQ80 : Scheduled to be compatible in March 2020
    • Additional Information
      • Compatible slot: SLOT NX specification
      • Connecting terminal :
        • Two SFP ports
        • MSA compliant
      • Input
        • Single link HD-SDI signal SMPTE ST 292 compliant
        • Single link 3G-SDI signal SMPTE ST 424, 425-2 compliant
        • Single link 6G-SDI signal SMPTE ST 2081-1, 2081-10 compliant
        • Single link 12G-SDI signal SMPTE ST 2082-1, 2082-10 compliant
      • Output: The signal input to the terminal or the terminal is output from the terminal (active through output).
