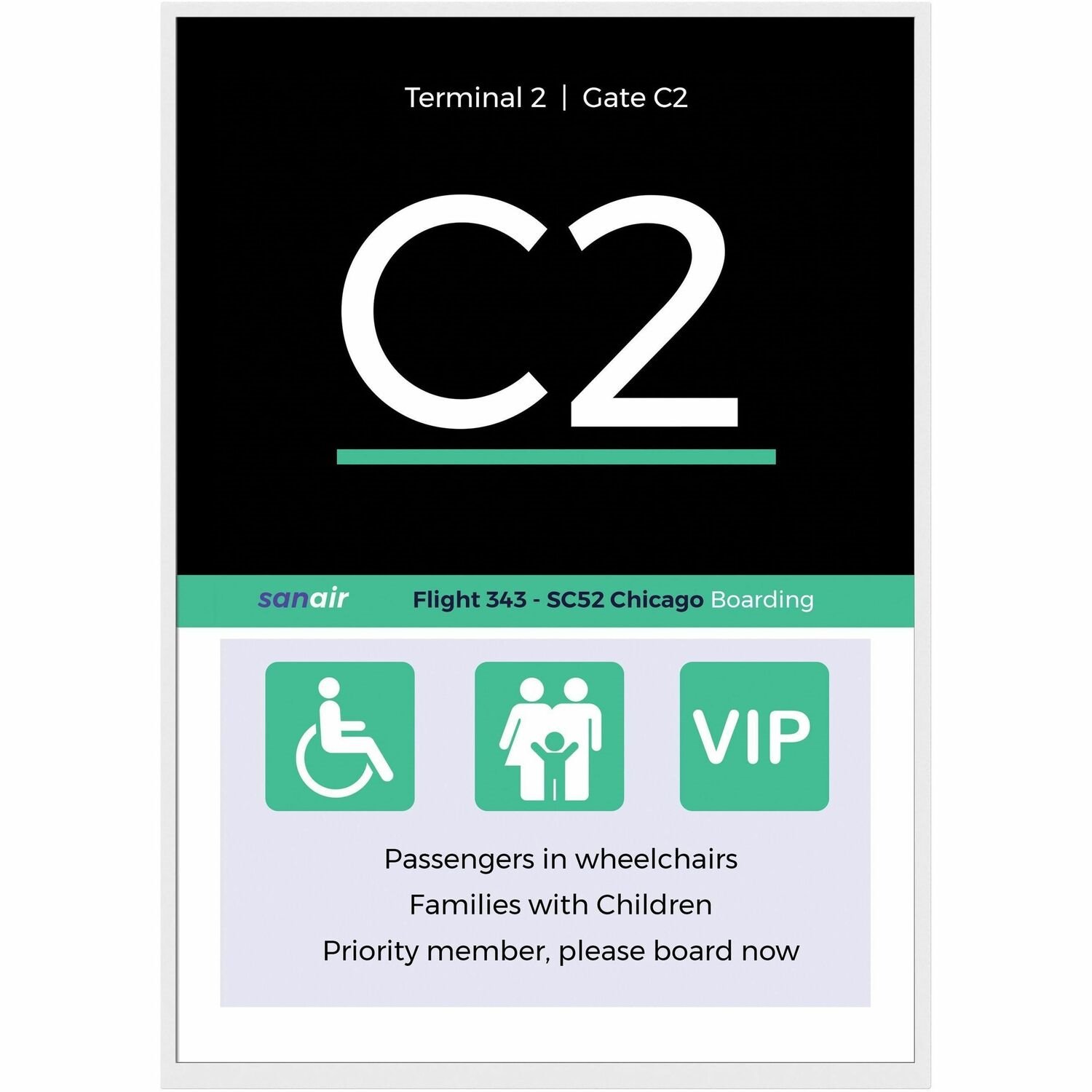

Sharp's EP-CA22 ePaper is an always on 28.6" display for digital signage users. With as low as 0W power consumption, it creates remarkably brilliant images even in brightly lit environments. With a paper like view, wide viewing angle and no backlight its easy on your eyes. Updating content is easy using either the PC, USB-C thumbdrive, Wireless or Bluetooth connections.
Features
- Always-On- Display is viewable at all times creating vibrant images even without power.
- Low Power Consumption- As low as 0W power consumption from the panel creating zero carbon emissions.
- Visiblility- The displays ensure excellent visibility in both the brightest environments, as well as semi-outdoor settings.
- Paper-Like- Reflective display with no backlight and 180° wide viewing angle provide paper like viewing that is easy on the eyes.
- Easy to install- The thin lightweight design allows for easy and flexible installation. It also enables installation in locations that could not be achieved with existing displays.
- Flexible content provisioning- PC, USB-C thumbdrive, Bluetooth, and wireless LAN connectivity allow for multiple ways to transfer content from the source to the display.
- Controls- The Mode button offers the capability to switch between Manually or Automatically switching images. The Pairing button allows for connection to mobile devices to update content to the display.
- General Information
- Manufacturer
- Sharp Electronics
- Manufacturer Website Address
- http://www.sharpusa.com
- Brand Name
- Sharp
- Packaged Quantity
- 1 / Pack
- Product Type
- Digital Signage Display
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Panel Technology
- ePaper
- Display & Graphics
- Number of Screens
- 1
- Viewable Screen Size
- 28.60"
- Screen Size Class
- 29"
- Display Screen Type
- LCD
- Aspect Ratio
- 1.4:1
- Orientation
- Face-up/Landscape/Portrait/Face-down
- Network & Communication
- Ethernet
- Yes
- Wireless LAN
- Yes
- Bluetooth
- Yes
- Interfaces/Ports
- USB
- Yes
- USB Type-C
- Yes
- Power Description
- Input Voltage
- 9 V DC
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Minimum Storage Temperature
- 68°F (20°C)
- Maximum Storage Temperature
- 140°F (60°C)
- Minimum Operating Humidity
- 20%
- Maximum Operating Humidity
- 80%
- Minimum Storage Humidity
- 10%
- Maximum Storage Humidity
- 80%
- Physical Characteristics
- VESA Mount Standard
- 200 x 200
- Height
- 17.2"
- Width
- 24.3"
- Depth
- 0.6"
- Weight (Approximate)
- 5.07 lb
- Miscellaneous
- Package Contents
- 28.6" ePaper
- Power Cord
- AC Adapter
- Operation Manual
- Warranty Card
- Indoor/Outdoor
- Outdoor
- Country of Origin
- China
- Country of Assembly
- China
