- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Serial/Parallel Combo Adapter

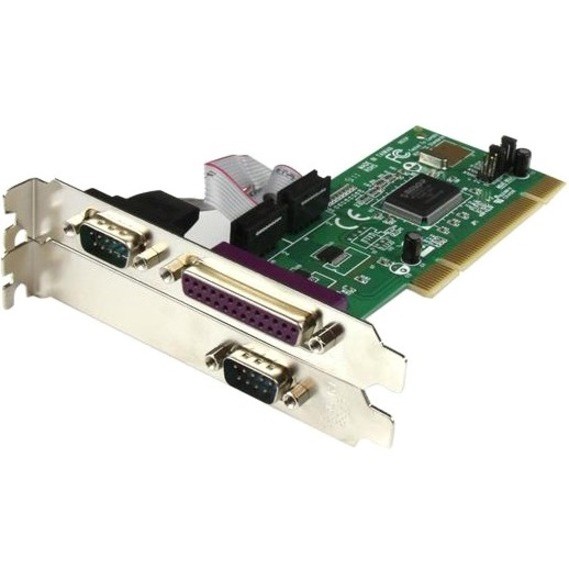

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot.
Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy.
The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
More from the Manufacturer
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Host Interface
- PCI
- Data Transfer Rate
- Up to 430kB/s Serial Port
- UART Type
- 16550
- Parallel Port Modes
- EPP/ECP
- Interfaces/Ports
- Number of Parallel Ports (External)
- 1
- Number of Serial Ports (External)
- 1
- Physical Characteristics
- Form Factor
- Plug-in Card
- Card Height
- Low-profile
- Height
- 4.7"
- Width
- 0.8"
- Length
- 4.7"
- Weight (Approximate)
- 2.30 oz
- Miscellaneous
- Package Contents
- 2S1P PCI Serial Parallel Combo Card with 16550 UART
- 1 x DB9 Ribbon Cable
- 3 x Low Profile Brackets
- 1 x Driver CD
- 1 x Instruction Manual
- Additional Information
- Guaranteed compatibility with any PC running Windows, DOS or Linux for simple integration into your application
- All three ports share only one IRQ, minimizing system resources required for the card
- Easy to install and use with full step-by-step instruction providing a hassle free serial solution
- Environmentally Friendly
- Yes
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
