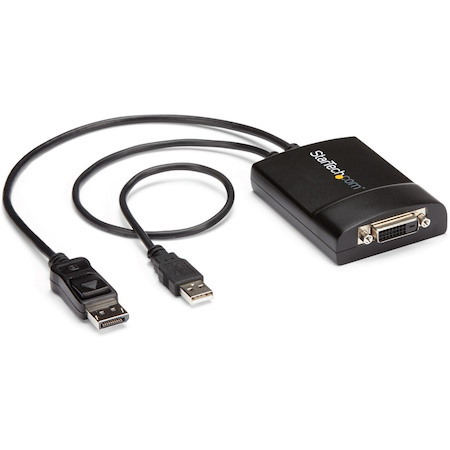

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
More from the Manufacturer
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1 Each
- Product Type
- Video Adapter
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connector Type on First End
- DisplayPort Digital Audio/Video - Male
- USB Type A - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 1 x 20-pin DisplayPort Digital Audio/Video - Male
- 1 x 4-pin USB Type A - Male
- Connector Type on Second End
- DVI-D (Dual-Link) Digital Video - Female
- Connector Gender on Second End
- Female
- Connector on Second End Details
- 1 x 19-pin DVI-D (Dual-Link) Digital Video - Female
- Connector Plating
- Nickel
- Contact Plating
- Gold
- Features
- Active
- HDCP
- Extended Display Identification Data (EDID)
- Screw Lock
- Cable Length
- 1.22 ft
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 0.9"
- Width
- 2.5"
- Weight (Approximate)
- 5.60 oz
- Miscellaneous
- Certifications & Standards
- CE
- FCC
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
