- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Server
Fanless and IoT Gateways l Super-optimized systems designed for reliable,quiet operationin tight spaces
- Fanless designs vastly increase reliability and eliminate noise with innovative thermal designs
- Supermicro's Embedded SuperServers are application optimized, cost-effective and ideal for space-constrained applications
- Designs supporting a wide range of low-power Intel® processors
- Multiple Form Factors optimized for your IoT or Embedded Application
- Competitive Price/Performance while providing ultra-quiet, low-power operation
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Type
- Core i5
- Processor Generation
- 8th Gen
- Processor Model
- i5-8365UE
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Clock Speed
- 2.40 GHz
- Error Checking
- Non-ECC
- Total Number of Memory Slots
- 2
- Signal Processing
- Unregistered (Unbuffered)
- Controllers
- Controller Type
- Serial ATA
- I/O Expansions
- Number of Total Expansion Bays
- 1
- Number of Internal 2.5" Bays
- 1
- Display & Graphics
- Graphics Controller Model
- UHD Graphics 620
- Graphics Memory Accessibility
- Shared
- Graphics Memory Technology
- DDR4 SDRAM
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- HDMI
- Yes
- Total Number of USB Ports
- 4
- Number of USB 3.1 Type-A Ports
- 4
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- DisplayPort
- Yes
- Number of DisplayPorts
- 1
- Power Description
- Maximum Power Supply Wattage
- 60 W
- Physical Characteristics
- Form Factor
- 3.5" SBC
- Height
- 1.7"
- Width
- 7.5"
- Depth
- 4.7"
- Weight (Approximate)
- 2.65 lb
- Miscellaneous
- Package Contents

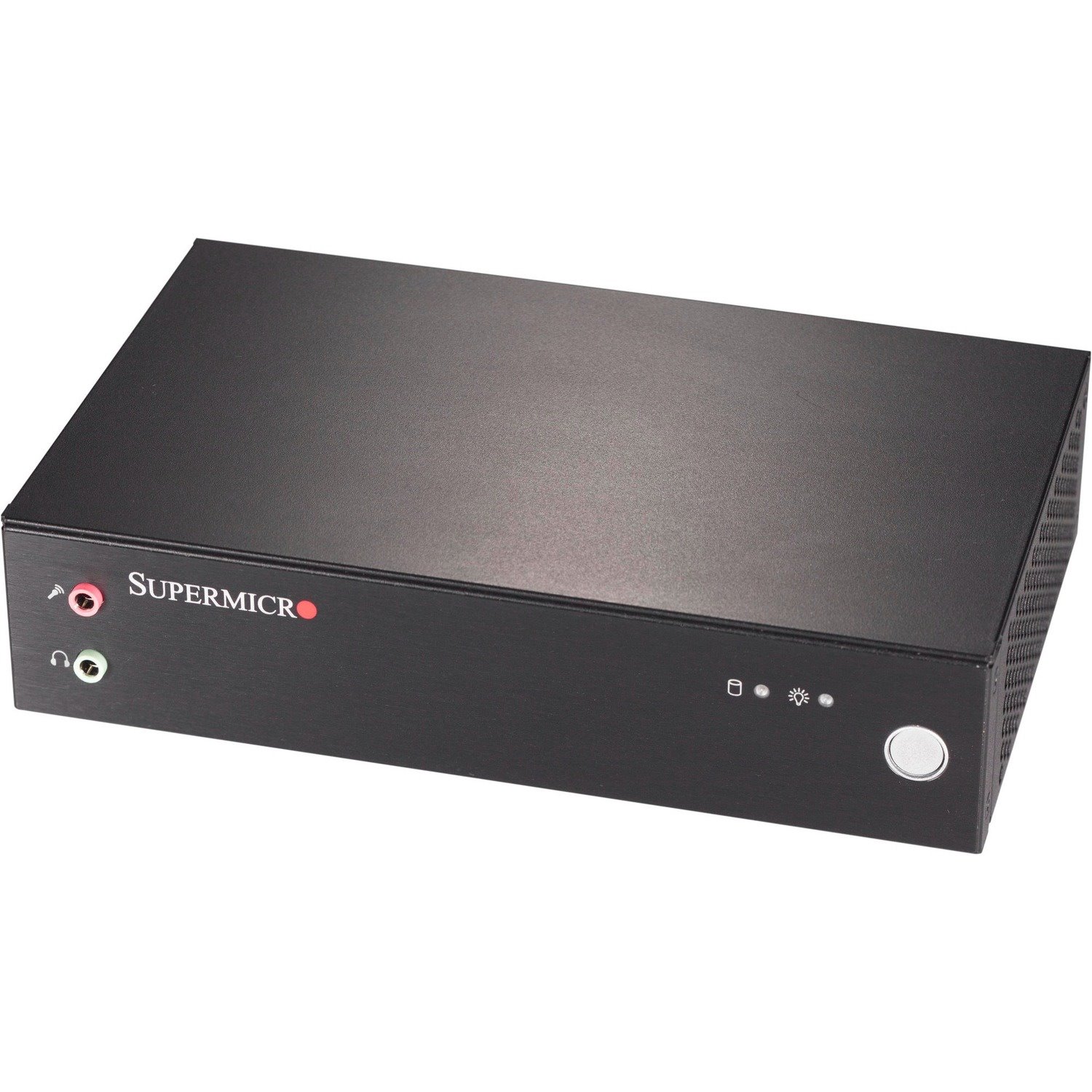

- SuperServer E102-9W-E (Black)
- 1 x Motherboard
- 1 x Chassis
- 1 x Power Adapter
- 1 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
- 1 x PWR EXT,2X4F/P2.00 to 2x2M/P4.2, 12V,15CM,24AWG, 2.5A/pin, -20~80C, RoHS
- 1 x Cooling Fan
- 1 x I/O Shield
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
