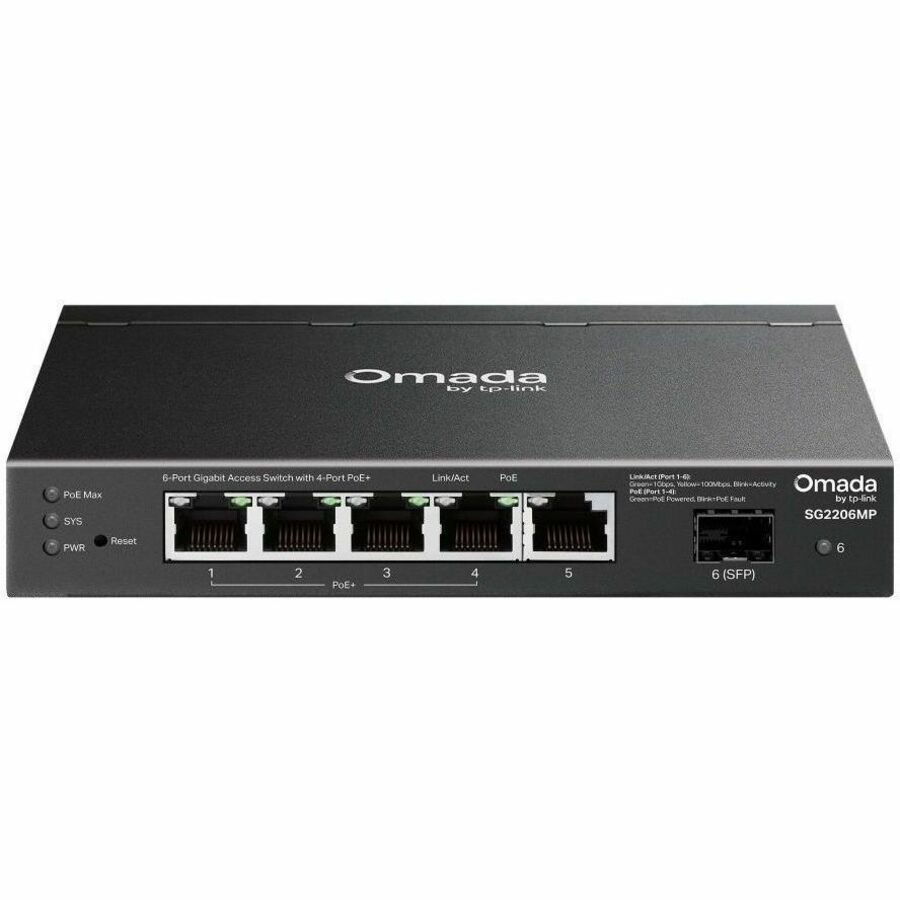

OmadaAccess6-Port Gigabit PoE+ Switch
5× Gigabit Ports (4× PoE+), 1× SFP Slot
63W Total PoE Budget
Fanless Design for Silent Operation
Centralized Management
Traffic Separation
Access Control
Static Routing Omada App
Power over Ethernet, Flexible Network Deployment
4× Gigabit PoE+ RJ45 Ports
Up to 30W per PoE+ Port
Total 63W PoE Power Budget
Compatible with 802.3af/at PoE and non-PoE devices
- Access Point
- IPPhone
- IPCamera
- Gateway/AggregationSwitch
Software Defined Networking (SDN) with Cloud Access
Multiple Application Scenarios
Wi-Fi Coverage Works with Access Points
Surveillance Works with IP Cameras
Conference Call Works with IP Phones
Wired Connections Works with Non-PoE Devices such as PCs and Printers
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- Omada
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Remote/Cloud Management
- Fanless
- Reset Button
- Broadcast Storm Control
- DHCP Relay
- Remote Monitoring (RMON)
- DHCP Snooping
- Energy Efficient
- Strict Priority Queuing (SPQ)
- Support Dual Image
- Interfaces/Ports
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 × 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
- 1 × 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
- 1 x Gigabit Ethernet SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 1000Base-X
- Maximum Data Transfer Rate
- 128 MB/s
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP
- Number of SFP Slots
- 1
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3x
- IEEE 802.1ab
- IEEE 802.1s
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1az
- IEEE 802.3af
- IEEE 802.3at
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 63 W
- Power Source
- Power Adapter
- DC
- Power Consumption
- 73.70 W
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- Desktop
- Wall Mountable
- Height
- 1"
- Width
- 6.2"
- Depth
- 4"
- Miscellaneous
- Application/Usage
- Network
- Traffic
- Wireless Access Point
- IP Phone
- IP Camera
- Surveillance
- PC
- Printer
