• General Information
• • Manufacturer
  • TRENDnet
  • Manufacturer Website Address
  • http://www.trendnet.com
  • Brand Name
  • TRENDnet
  • Product Type
  • Ethernet Switch

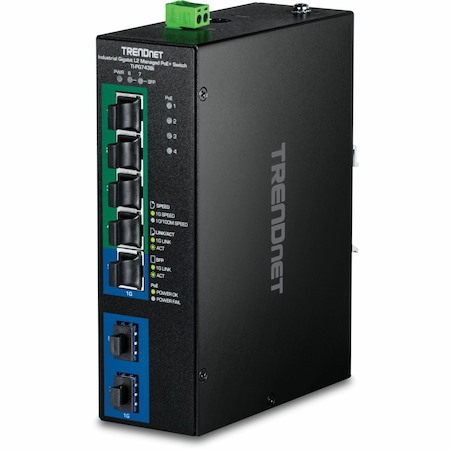

TRENDnet's 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch, model TI-PG743Bi, features four Gigabit PoE+ ports with a 120W PoE budget, one gigabit port, and two SFP ports that support both 100Base-FX and 1000Base-FX modules for long-distance fiber applications. The hardened network switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this managed PoE+ switch a powerful solution for SMB networks.

Easily manage and configure TRENDnet's 7-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch remotely by updating the switch to the latest firmware for access to TRENDnet Hive™. TRENDnet Hive is a network cloud manager that reduces management time and cost. This cloud managed switch requires no additional hardware, server, or personal cloud with TRENDnet's reliable cloud service.

Integration Flexibility

Managed features include PoE control, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

PoE Power

A 120W PoE power budget supplies up to four Power over Ethernet devices, and includes advanced PoE port controls, such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

Industrial Design

Equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

FEATURES | Network Ports

4 x Gigabit PoE+ ports, 1 x Gigabit port, 2 x Gigabit SFP ports

PoE Power

Supplies up to 30W of PoE+ power per port with a 120W power budget

Full PoE Control Per Port

Available PoE port controls include enabling / disabling PoE, power priority, PD alive check, and power scheduling

Hive Enabled

Remotely manage, configure, and diagnose this L2 switch via TRENDnet's cloud service (Additional fee applies)

Traffic Management

Managed features include 802.1Q, MAC & Port Isolation VLAN, IGMP Snooping, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP, and link aggregation for flexible network integration

Access Control

Managed access control features include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

System Monitoring

Monitoring features include SNMP v1 / v2c / v3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, and SFP DDMI

DIN-Rail Mount

IP40 rated metal enclosure includes DIN-Rail mounting bracket

Switching Capacity

14Gbps switching capacity.

Single Power Input

Single power input (terminal or power adapter) with overload current protection (power supply sold separately: TIS24048, TIS24052, TI-S15052) (power adapter sold separately: 48VDC3000).

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance.

Extreme Temperature Range

A wide operating temperature range of -40° - 75° C (-40° - 167° F) allows for installations in extreme hot or cold environments.

• Warranty
• • Limited Warranty
  • Lifetime
