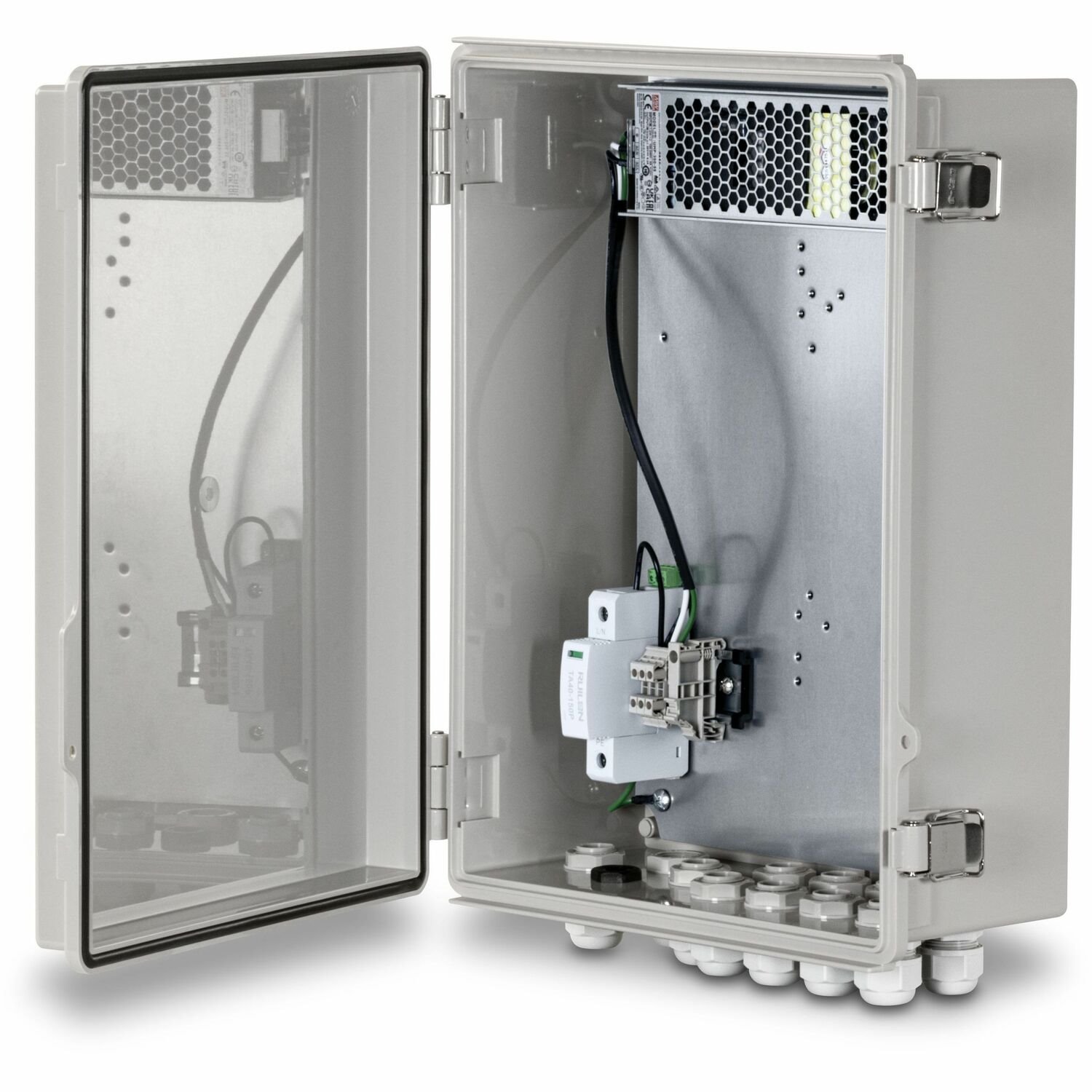

The TRENDnet Outdoor IP68 Weatherproof Enclosure with Power Supply, model TI-CA4K, is well suited for use with TRENDnet's line of industrial switches, fiber converters, and PoE injectors. The internal mounting holes of the outdoor network cabinet provide a safe and convenient way to install industrial devices while protecting them from the elements. An extreme operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in very hot or cold environments. This durable, outdoor network enclosure comes with a power supply that provides up to 350W (55V DC, 6.3A) of power to industrial equipment, such as PoE switches, injectors and wireless access points.
IP68 Outdoor Rated
This outdoor network enclosure is IP68 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors.
Internal Mounting Design
The internal mounting design provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements.
Wide Temperature Range
A wide operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in extreme hot or cold environments.
Outdoor Rated
IP68 rated for outdoor use with TRENDnet industrial switches, fiber converters, and PoE injectors
Surge Protection
20kA @ 8/20 µs surge protection
Wide Temperature Range
A wide operating temperature range of -30° - 70° C (-22° - 158° F) allows for installations in extreme hot or cold environments
Impact Protection
This outdoor network cabinet features an IK10 impact protection
Wall Mount
This wall-mount network cabinet is designed to be installed on vertical surfaces
Housing Design
The outdoor network cabinet features a rugged polycarbonate construction with IP68 weather protection
Power Supply
Provides up to 350W power to PoE and non-PoE devices
Internal Mounting Design
The internal mounting design of the outdoor network cabinet provides a safe and convenient way to install a DIN-Rail for mounting industrial devices while protecting them from the elements
- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Protection Type
- Surge
- Features
- Halogen-free
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 55 V DC
- Output Voltage Detail
- 55 V DC @ 6.3 A
- Output Current
- 6.30 A
- Output Power
- 350 W
- Input Frequency
- 50-60Hz
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 158°F (70°C)
- Physical Characteristics
- Form Factor
- Wall Mount
- DIN Rail
- Internal
- Height
- 15.7"
- Width
- 11.8"
- Depth
- 5.9"
- Weight (Approximate)
- 8.16 lb
- Miscellaneous
- Package Contents
- Outdoor IP68 Weatherproof Enclosure with 350W Power Supply
- 18 AWG Power Cable
- Wall-mount Accessories
- Certifications & Standards
- CE
- FCC
- UL 62368
- CB IEC 62368
- Country of Origin
- China
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
