- General Information
- Manufacturer
- Ubiquiti Inc.
- Manufacturer Website Address
- http://www.ui.com
- Brand Name
- Ubiquiti
- Product Type
- Line-interactive UPS

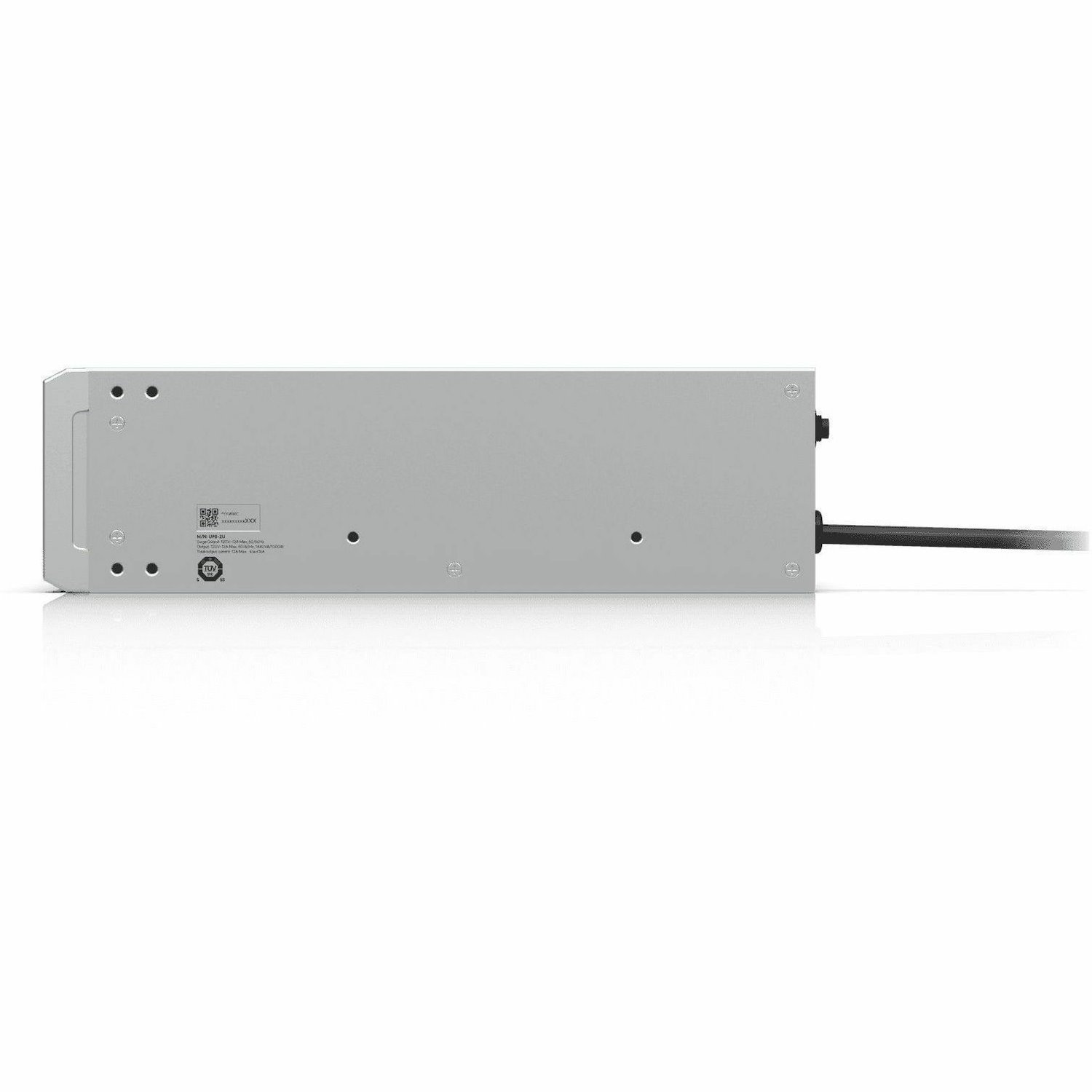

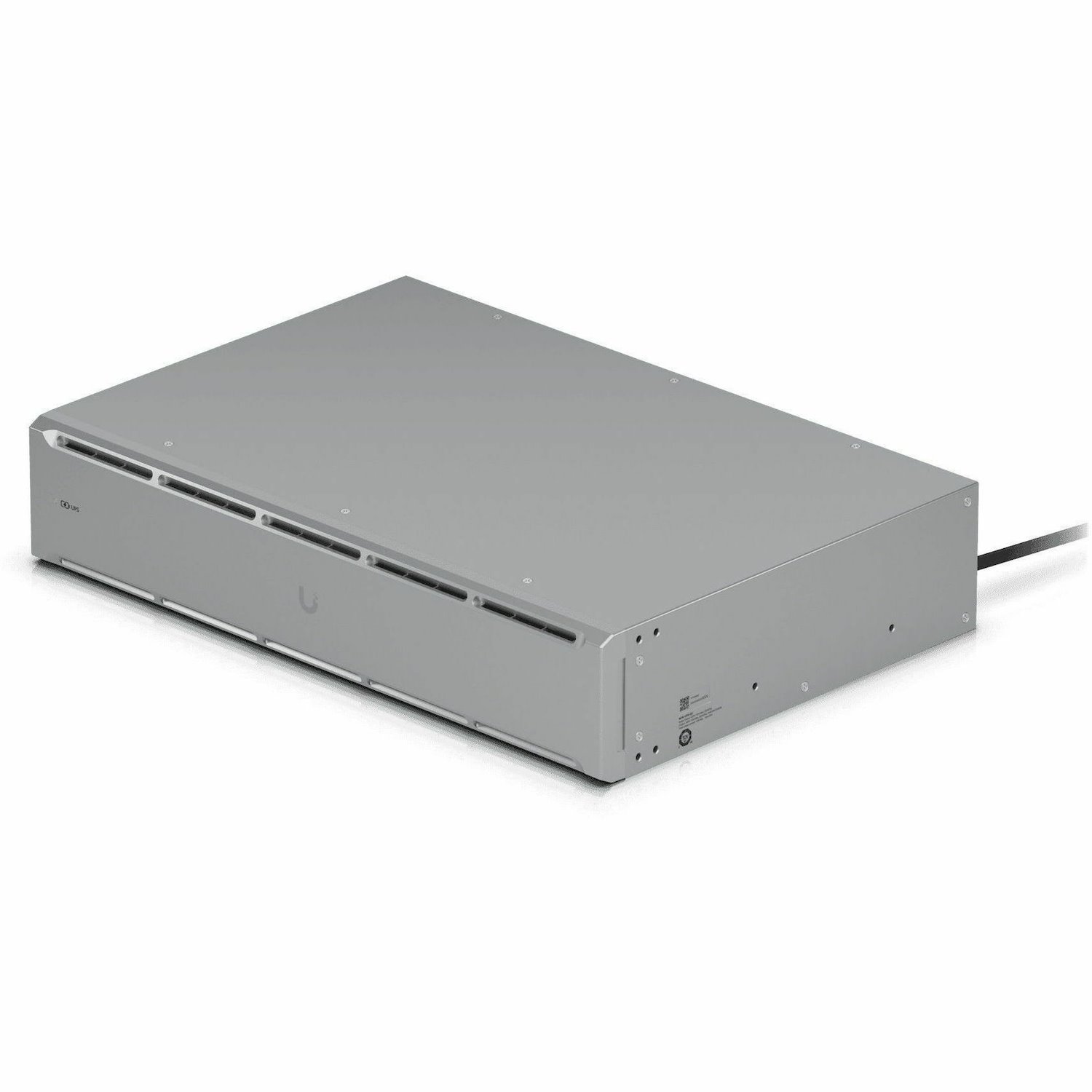

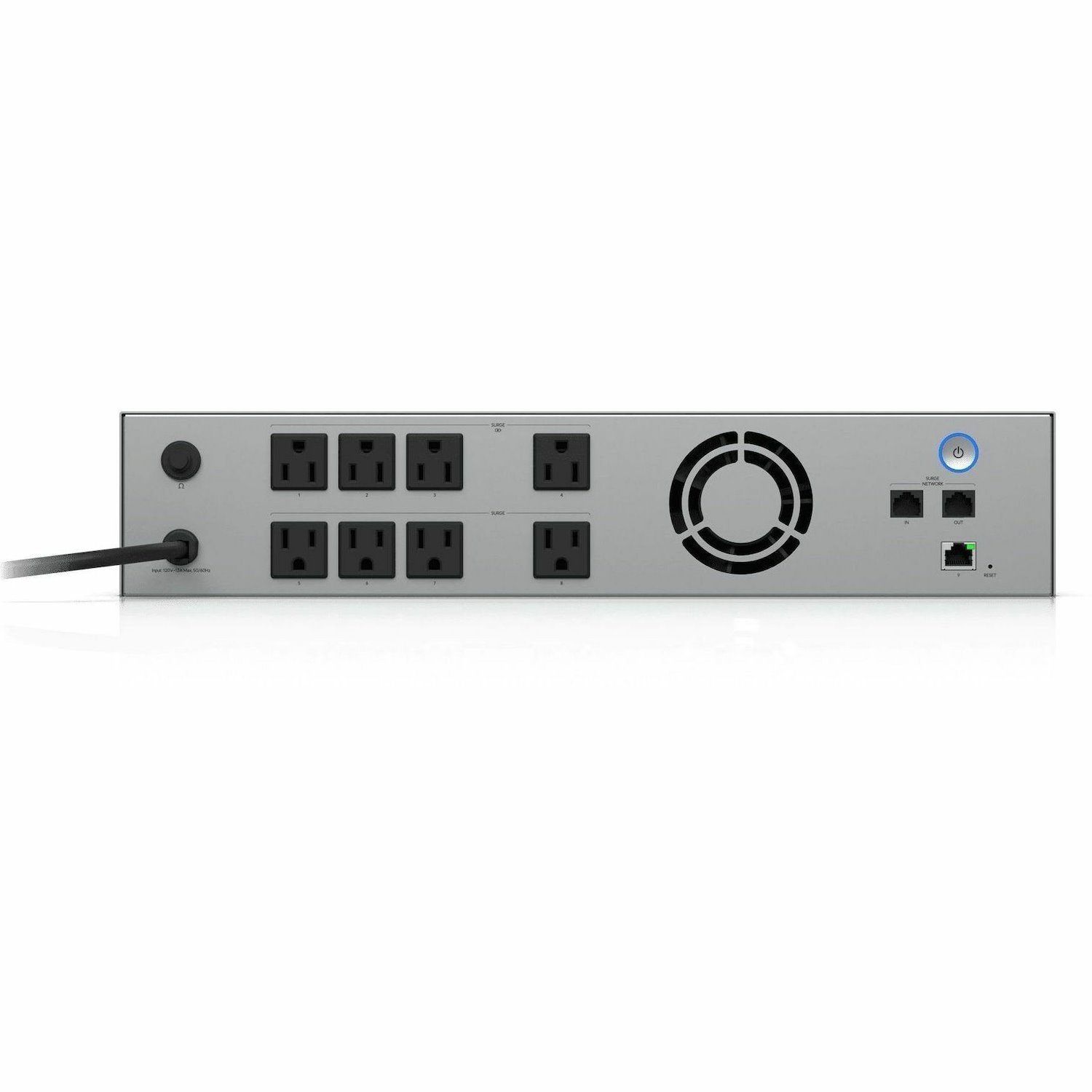

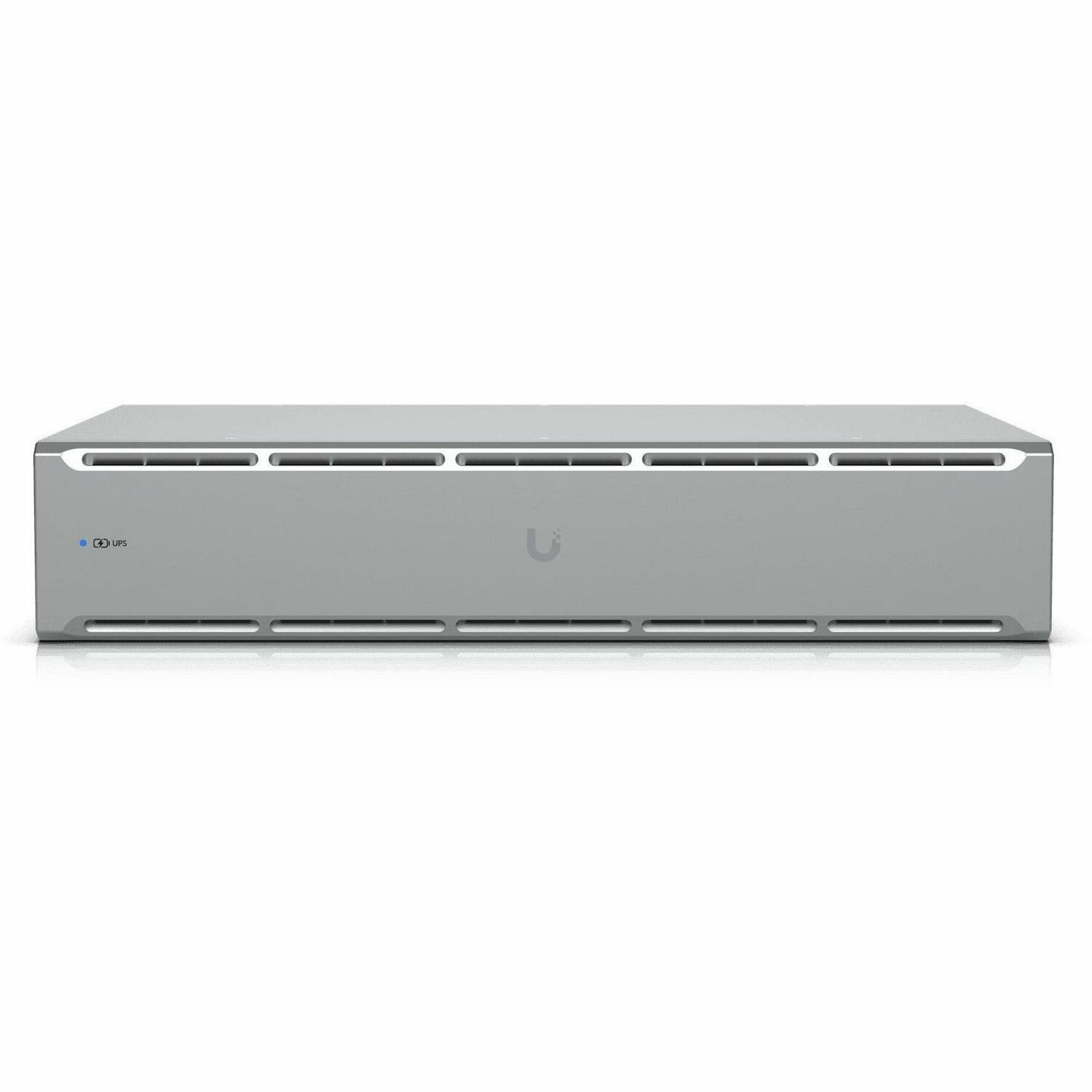

UniFi managed 1.44kVA rackmount uninterruptible power supply with 4 backup outlets, 4 surge outlets, and a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.
- Technical Information
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 8 x NEMA 5-15R
- Number of Battery & Surge Outlets
- 4
- Number of Surge-only Outlets
- 4
- Dataline Protection
- RJ-45
- Overload Protection
- Yes
- Cord Length
- 5.91 ft
- Transfer Time
- 10 ms
- Power Description
- Load Capacity (VA)
- 1440 VA
- Load Capacity (Watt)
- 1000 W
- Input Voltage
- 120 V AC
- Input Voltage Range
- 89 V AC - 145 V AC
- Input Current
- 12 A
- Output Voltage
- 120 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Simulated Sine Wave
- Circuit Breaker
- Yes
- Controls/Indicators
- Status Indicators
LED:
- Off: device not turned on
- Flashing white: initializing / factory default
- Steady white: waiting for adoption
- Steady blue: device adoption and working
- Flashing blue: battery mode
- Alternating white/blue: firmware upgrading
- Rapid flashing blue: locate
- Steady red: warning
- Flashing red: low battery
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Battery Information
- Number of Batteries
- 2
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 2.30 Minute
- Backup/Run Time (Half Load)
- 8 Minute
- Typical Battery Recharge Time
- 8 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- -4°F (-20°C) - 122°F (50°C)
- Maximum Operating Elevation
- 9842.52 ft
- Physical Characteristics
- Height
- 17.4"
- Width
- 11.8"
- Depth
- 3.4"
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 30.86 lb
- Miscellaneous
- Certifications & Standards
- IP20
- FCC
- IC
- UL 1778
- CSA C22.2 No. 107.3
- NDAA Compliant
- Yes
