- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Type
- Line-interactive UPS
Proven Industrial UPS power protection for control applications and harsh environments.
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years repair or replace
- Technical Information
- Plug/Connector Type
- Hard Wire 3 wire (1PH+N+G)
- Receptacle Type
- Hard Wire 3-wire (H N + G)
- Receptacle Detail
- 1 x Hard Wire 3-wire (H N + E)
- Number of Battery & Surge Outlets
- 1
- Transfer Time
- 0 ns
- Application/Usage
- Industry
- Transportation
- Mission Critical Equipment
- Pharmaceutical
- Chemical
- Automotive
- Power Description
- Load Capacity (VA)
- 500 VA
- Load Capacity (Watt)
- 325 W
- Input Voltage
- 120 V
- Input Voltage Range
- 82 V AC - 144 V AC
- Output Voltage
- 120 V AC
- Input Frequency
- 60 Hz
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 540 J
- Management
- Network Management
- DB9 RS-232/SmartSlot
- Alarm
- On Battery
- Low Battery
- Overload
- Configurable Delay
- Controls/Indicators
- Status Indicators
- LED Status Display:
- On Line
- On Battery
- Replace Battery
- Overload
- Interfaces/Ports
- Serial Port
- Yes
- EPO Port
- Yes
- Battery Information
- Number of Batteries
- 1
- Battery Characteristics
- Maintenance-free, Sealed, Leak-proof
- Battery Chemistry
- Lead Acid
- Battery Energy
- 432 kJ
- Backup/Run Time (Full Load)
- 8.10 Minute
- Backup/Run Time (Half Load)
- 24.40 Minute
- Typical Battery Recharge Time
- 2 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Maximum Operating Temperature
- 122°F (50°C)
- Storage Temperature
- 23°F (-5°C) - 131°F (55°C)
- Maximum Operating Elevation
- 9842.52 ft
- Maximum Storage Elevation
- 49212.60 ft
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 55 dB(A)
- Thermal Dissipation
- 26.38 W
- Physical Characteristics
- Height
- 5.8"
- Width
- 14.3"
- Depth
- 6.7"
- Form Factor
- Tower
- Mounting Preference
- No Preference
- Weight (Approximate)
- 25.31 lb
- Miscellaneous
- For Country/Region
- United States
- Package Contents

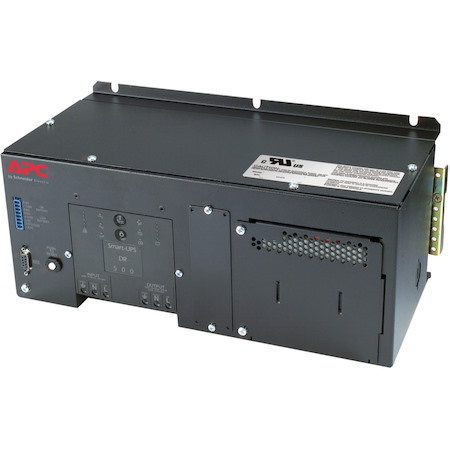

- 500VA Panel Mount UPS
- CD with software
- Documentation CD
- Installation guide
- Smart UPS signalling RS-232 cable
- Certifications & Standards
- UL Recognized
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA500PDR-H_ROHS_DECLARATION&p_FileName=SUA500PDR-HKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384167192&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384167192&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
- California Proposition 65 Warning
- "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
- REACH free of SVHC
- No
- Country of Origin
- Philippines
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
