- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Type
- Line-interactive UPS

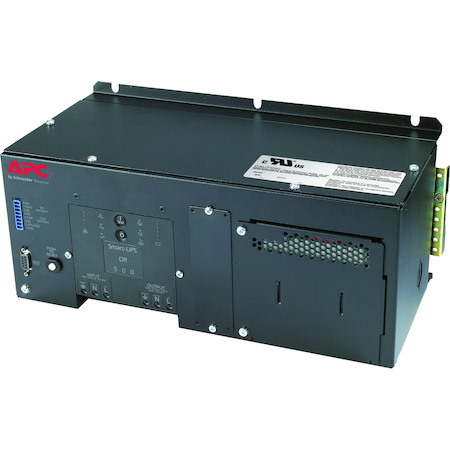

Proven Industrial UPS power protection for control applications and harsh environments.
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years repair or replace
- Technical Information
- Plug/Connector Type
- Hard Wire 3 wire (1PH+N+G)
- Receptacle Type
- Hard Wire 3-wire (H N + G)
- Receptacle Detail
- 1 x Hard Wire 3-wire (H N + E)
- Number of Battery & Surge Outlets
- 1
- Emergency Power OFF
- Yes
- Cord Length
- 8.01 ft
- Power Description
- Load Capacity (VA)
- 500 VA
- Load Capacity (Watt)
- 325 W
- Input Voltage
- 120 V
- Output Voltage
- 120 V AC
- Waveform Type
- Sine Wave
- Surge Energy Rating
- 540 J
- Interfaces/Ports
- Serial Port
- Yes
- Total Number of Expansion Slots
- 1
- Battery Information
- Battery Characteristics
- Maintenance-free, Sealed
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 8 Minute
- Backup/Run Time (Half Load)
- 24 Minute
- Typical Battery Recharge Time
- 2 Hour
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 5.8"
- Width
- 14.3"
- Depth
- 6.7"
- Rack Height
- 1U
- Form Factor
- Tower
- Mounting Preference
- No Preference
- Weight (Approximate)
- 28.35 lb
- Miscellaneous
- For Country/Region
- United States
- Package Contents
- Industrial Panel and DIN Rail UPS with Standard Battery 500VA 120V
- CD with software
- Documentation CD
- Installation guide
- Smart UPS signalling RS-232 cable
- Certifications & Standards
- UL Recognized
- Optimized Energy Efficiency
- Yes
- Product Take Back Program
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA500PDR-S_ROHS_DECLARATION&p_FileName=SUA500PDR-SKIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194164&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194164&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
- California Proposition 65 Warning
- "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
- REACH free of SVHC
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
