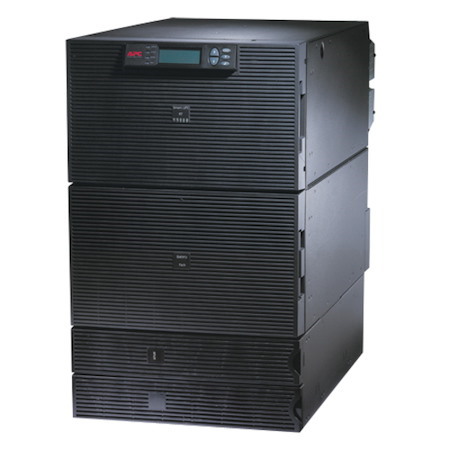

APC Smart-UPS RT 15kVA, 208V, LCD, rackmount, 16U, 2x L5-20R & 4x L6-20R & 2x L6-30R & 2x L14-30R NEMA outlets, w/transfo 208V to 120V

  • Part: 3079463
  • Model: SURT15KRMXLT-1TF10K
$24,400.00

Availability

Out of Stock

High density, double-conversion on-line power protection with scalable runtime

More from the Manufacturer

  • General Information
    • Manufacturer
    • Schneider Electric SA
    • Manufacturer Website Address
    • http://www.schneider-electric.com
    • Brand Name
    • APC by Schneider Electric
    • Product Line
    • Smart-UPS
    • Product Type
    • Double Conversion Online UPS
  • Warranty
    • Limited Warranty
    • 2 Year
    • Additional Warranty Information
    • 2 years repair or replace

  • Technical Information
    • Plug/Connector Type
    • Hard Wire 3-wire
    • Receptacle Type
    • Hard Wire 4-wire (2PH+N+G)
    • NEMA L5-20R
    • NEMA L6-20R
    • NEMA L6-30R
    • NEMA L14-30R
    • Receptacle Detail
    • 1 x Hard Wire 4-wire (2PH+N+G)
    • 2 x NEMA L5-20R
    • 4 x NEMA L6-20R
    • 2 x NEMA L6-30R
    • 2 x NEMA L14-30R
    • Number of Battery & Surge Outlets
    • 11
    • Overload Protection
    • Yes
  • Power Description
    • Load Capacity (VA)
    • 15 kVA
    • Input Voltage
    • 208 V AC
    • Output Voltage
    • 120 V AC
    • 208 V AC
    • Input Frequency
    • 50 Hz
    • Output Frequency
    • 60 Hz
    • Input Current
    • 83 A
    • Waveform Type
    • Sine Wave
  • Management
    • Network Management
    • SNMP Manageable
    • Bypass Switch
    • Automatic
    • External
    • Internal
    • Manual
    • Optional
    • Static
    • Emergency Power OFF
    • Yes
  • Interfaces/Ports
    • Serial Port
    • Yes
    • Network (RJ-45)
    • Yes
    • Modular Slots
    • SmartSlot
  • Battery Information
    • Number of Batteries
    • 4
    • Battery Characteristics
    • Maintenance-free/Sealed/Spill Proof
    • Battery Chemistry
    • Lead Acid
    • Backup/Run Time (Full Load)
    • 8 Minute
    • Typical Battery Recharge Time
    • 2.50 Hour
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Form Factor
    • Rack-mountable
    • Rack Height
    • 16U
    • Mounting Location
    • Front
    • Mounting Preference
    • Lower
    • Height
    • 27.9"
    • Width
    • 17"
    • Depth
    • 30.4"
    • Weight (Approximate)
    • 766.61 lb
  • Miscellaneous
    • For Country/Region
    • United States
    • Package Contents
      • Smart-UPS On-Line SURT15KRMXLT-1TF10K 15 kVA Tower/Rack Mountable UPS
      • CD with software
      • Rack mounting support rails
      • Smart UPS signalling RS-232 cable
      • User manual
      • Web/SNMP management card
    • Certifications & Standards
    • UL 1778|
    • Optimized Energy Efficiency
    • Yes
    • Product Take Back Program
    • No
    • RoHS Exemption Information
    • https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT15KRMXLT1TF10K_ROHS_DECLARATION&p_FileName=SURT15KRMXLT1TF10KKIT_ROHS_DECLARATION_US.pdf
    • REACH Declaration URL
    • https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567115162&lang=en-us
    • EU RoHS Declaration URL
    • https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567115162&lang=en-us
    • Environmental Profile Availability
    • https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
    • End of Life Manual Availability
    • https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
    • REACH free of SVHC
    • No
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
