- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Switched Metered-by-Outlet PDU
- Product Type
- PDU

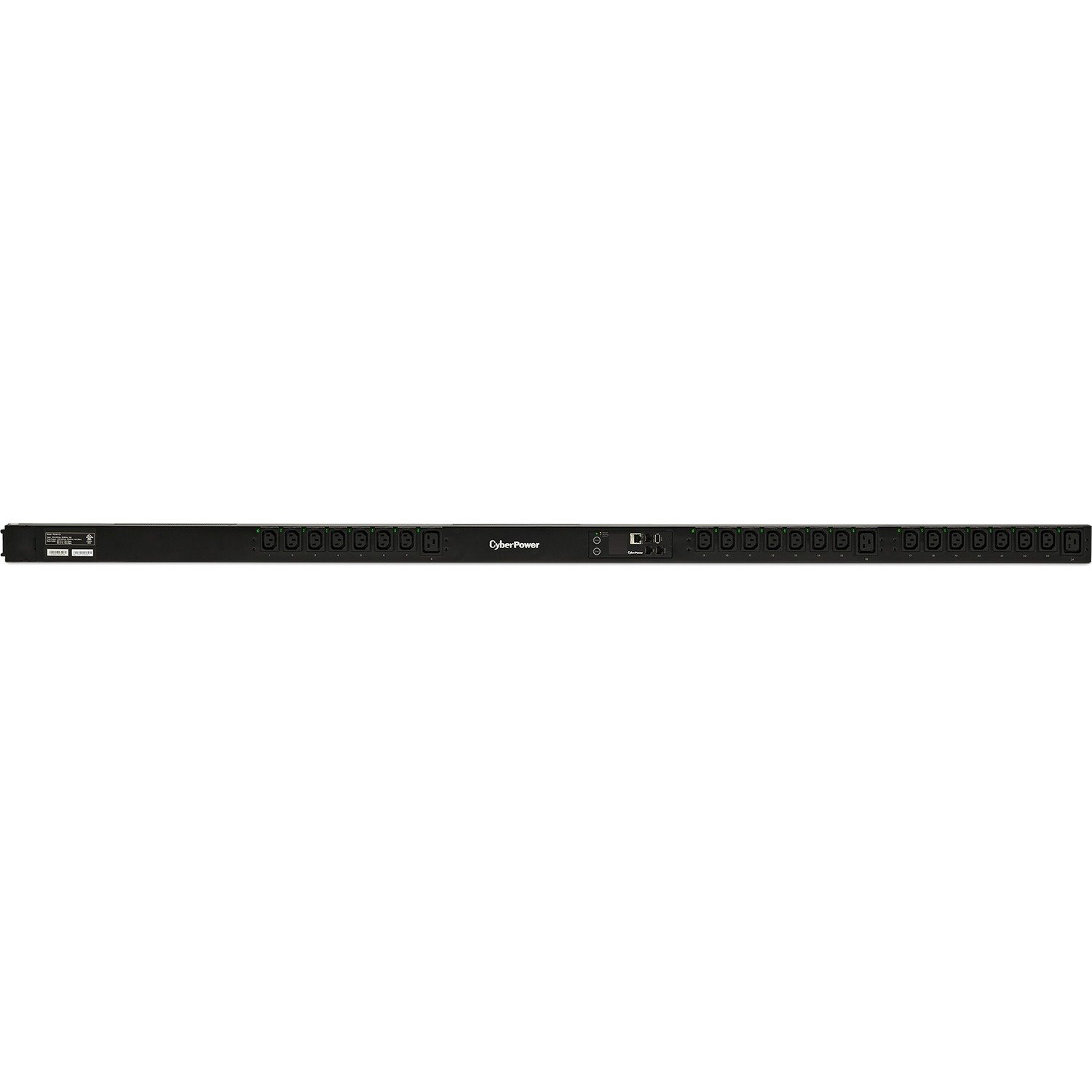

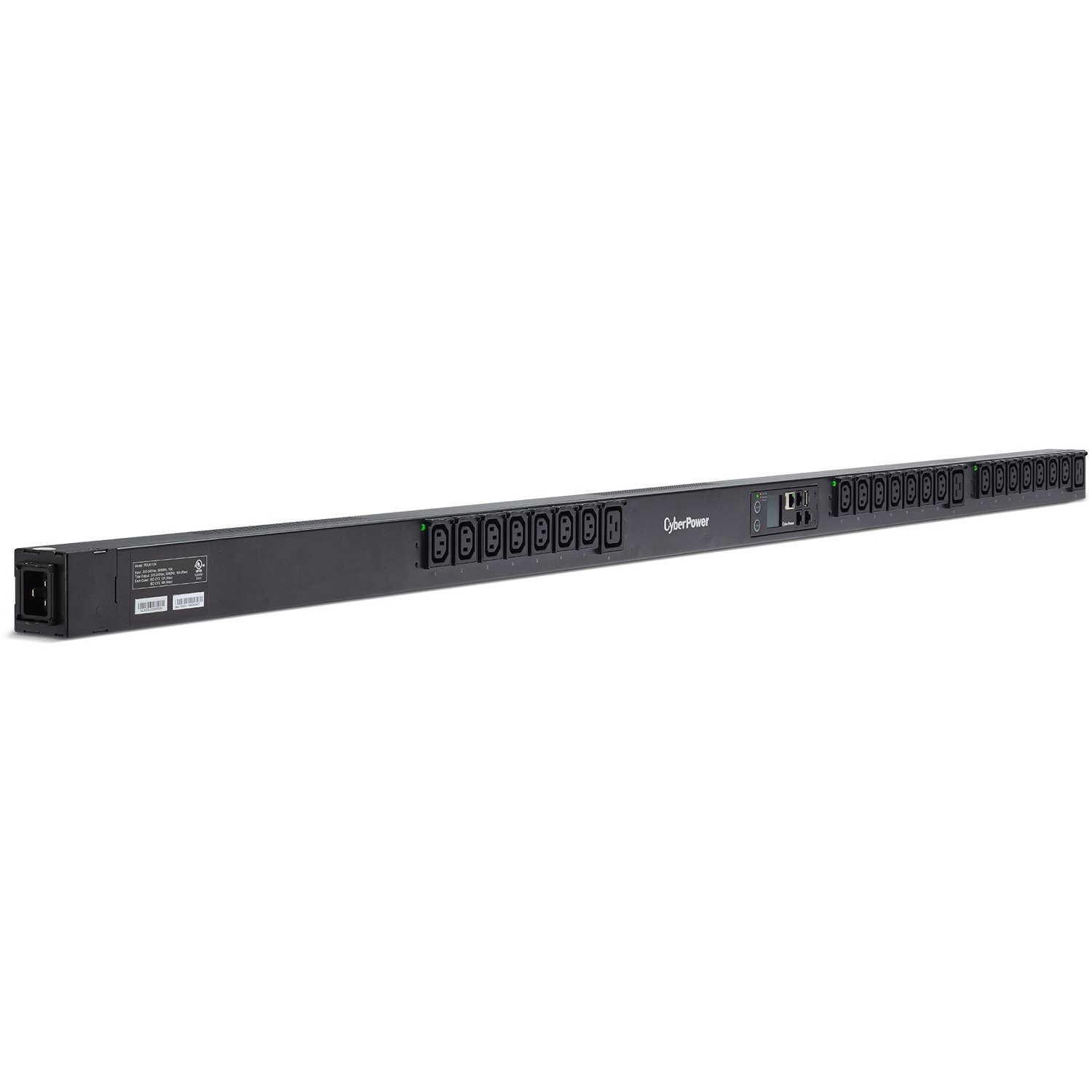

Streamline capacity planning and power management with the CyberPower PDU81104 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81104 supports inputs between 200-240V and includes 21 C13 and 3 C19 outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81104 is protected by a three-year limited warranty.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Switched with Metered-by-Outlet
- Phase
- Single Phase
- Plug/Connector Type
- NEMA L6-20P
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 21 x IEC 60320 C13
- 3 x IEC 60320 C19
- Protection Type
- Accidental Power Shutdown
- Features
- LCD Display
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage Range
- 200 V AC - 240 V AC
- Input Current
- 20 A
- Input Frequency
- 60 Hz
- Management
- Management
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- EnergyWise v1.2
- Remote Outlet Switching
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Metal
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Form Factor
- Rack
- Rack Height
- 0U
- Cord Length
- 10 ft
- Height
- 65.6"
- Width
- 2.2"
- Depth
- 1.9"
- Weight (Approximate)
- 17.20 lb
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Storage Temperature
- 5°F (-15°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Miscellaneous
- Package Contents
- PDU81104
- 2 x Mounting Brackets
- 6 x M4x5 Screws
- 6 x M5x12 Screws/Washers
- 6 x M3x6 Screws
- Cord Retention Tray
- Cable Ties
- RJ45/DB9 Cable
- User's Manual Registration
- Download Cards
- Additional Information
- Physical Dimensions - (WxHxD) (cm) : 5.59 x 166.62 x 4.8 (cm)
- Physical Dimensions - (WxHxD) (in) : 2.2 x 65.6 x 1.89 (in)
- Physical Dimensions - (WxHxD) (mm) : 56 x 1666 x 48 (mm)
- Weight (kg) : 7.8
- Weight (lb) : 17.2
- Shipping Dimensions - (WxHxD) (cm) : 18.75 x 11.43 x 189.23 (cm)
- Shipping - Dimensions (WxHxD, in) : 7.38 x 4.5 x 74.5 (in)
- Shipping - Dimensions (WxHxD, mm) : 187.45 x 114.3 x 1892.3 (mm)
- Shipping - Weight (kg) : 8.53
- Shipping - Weight (lb) : 18.8
- Cord Length : 10 ft (3.0 m)
- Derated Input Current : 16 A
- Input Frequency Range : 50 Hz - 60 Hz
- Input Plug Type : NEMA L6-20P
- Maximum Input Current : 20A
- Power Cord Length : 10 ft (3 m)
- Circuit Quantity : 1
- Nominal Output Voltage : 200 - 240 VAC
- Number of Outlets : 24
- Outlets - Total : 24
- Outlet Type COMPUTED : 21 - IEC-320 C13
- Overload Protection : None
- USB Charge Port : No
- Environmental Sensor : Optional, via RJ45
- Hardware Connection Port : RJ45
- LCD : Multifunction LCD
- Outlet switching : Yes
- Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD
- Upgradeable firmware : Yes
- Color : Black
- Form Factors Supported : 0U Vertical Rackmount
- Material of Construction : Metal
- Rack Height : 0U
- Operating Elevation : 0 - 11483 ft (0 - 3500 m)
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 32 - 140 °F (0 - 60 °C)
- Storage Elevation : 0 - 49213 ft (0 - 14999 m)
- Storage Temperature : 5 - 149 °F (-15 - 65 °C)
- Safety : UL 60950-1
- Extended Warranty Option : WEXT5YR-PDU1B
- Product Warranty : 3 Year Limited Warranty
- Application/Usage
- Data Center
- Network Closet
- Certifications & Standards
UL 60950-1
- Energy Star
- No
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- UL Listed
- Yes
