Buy CyberPower PDU81105 Single Phase 200 - 240 VAC 30A Switched Metered-by-Outlet PDU

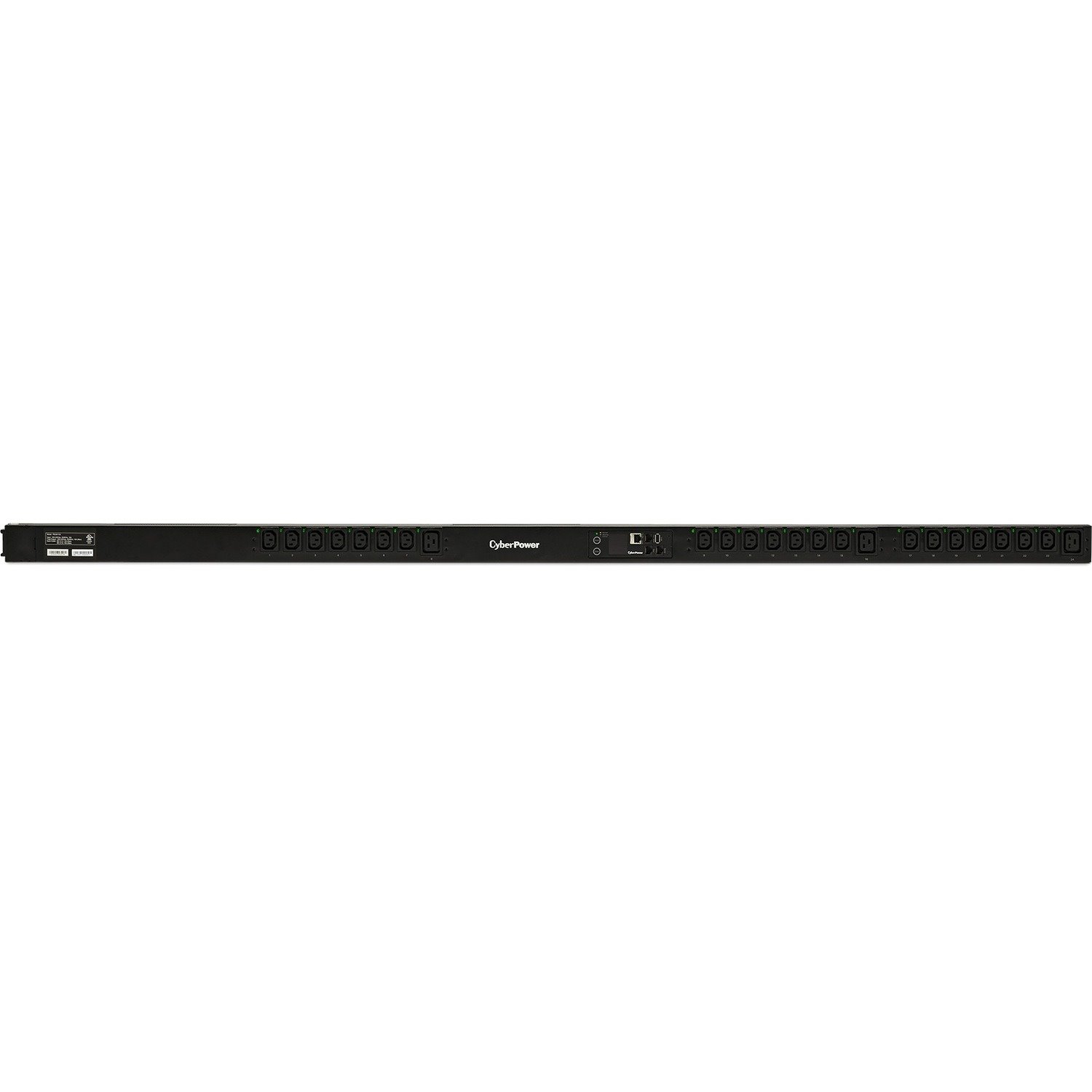

CyberPower PDU81105 Single Phase 200 - 240 VAC 30A Switched Metered-by-Outlet PDU

Part: 1225342
Model: PDU81105

$2,510.15

Availability

In Stock

General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Switched Metered-by-Outlet PDU
- Product Type
- PDU

Streamline capacity planning and power management with the CyberPower PDU81105 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.

The PDU81105 supports inputs between 200-240V and includes 21 C13 and 3 C19 outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81105 is protected by a three-year limited warranty.

Warranty
- Limited Warranty
- 3 Year

Technical Information
- PDU Type
- Switched with Metered-by-Outlet
- Phase
- Single Phase
- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 21 x IEC 60320 C13
- 3 x IEC 60320 C19
- Protection Type
- Overload Protection
- Overload Protection
- Locking Receptacles
- Cord Retention Tray
- Features
- LCD Display
- LED Status Indicator

Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage Range
- 200 V AC - 240 V AC
- Input Current
- 30 A
- Input Frequency
- 60 Hz
- Circuit Breaker
- Yes

Management
- Management
- - IPv4
  - TCP/IP
  - UDP
  - SNMPv1
  - HTTP
  - NTP
  - DNS
  - Telnet
  - DHCP
  - SMTP
  - FTP
  - IPv6
  - SNMPv3
  - HTTPs
  - SSH
  - SSL
  - TLS
  - LDAP(S)
  - RADIUS
  - Syslog
  - CLI
  - Windows AD
  - EnergyWise v1.2
- Remote Outlet Switching
- Yes

Interfaces/Ports
- Network (RJ-45)
- Yes

Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Metal
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Form Factor
- Rack
- Rack Height
- 0U
- Cord Length
- 10 ft
- Height
- 65.5"
- Width
- 2.2"
- Depth
- 1.9"
- Length
- 1.9"
- Weight (Approximate)
- 17.64 lb

Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Storage Temperature
- 5°F (-15°C)
- Maximum Storage Temperature
- 149°F (65°C)

Miscellaneous
- Package Contents
- - PDU81105
  - 2 x Mounting Brackets
  - 6 x M4x5 Screws
  - 6 x M5x12 Screws/Washers
  - 6 x M3x6 Screws
  - Cord Retention Tray
  - Cable Ties
  - RJ45/DB9 Cable
  - User's Manual Registration
  - Download Cards
- Additional Information
- - Physical Dimensions - (WxHxD) (cm) : 5.59 x 166.37 x 4.83 (cm)
  - Physical Dimensions - (WxHxD) (in) : 2.2 x 65.5 x 1.9 (in)
  - Physical Dimensions - (WxHxD) (mm) : 56 x 1664 x 48 (mm)
  - Weight (kg) : 8.0
  - Weight (lb) : 17.64
  - Shipping Dimensions - (WxHxD) (cm) : 18.49 x 189.51 x 11.51 (cm)
  - Shipping - Dimensions (WxHxD, in) : 7.28 x 74.61 x 4.53 (in)
  - Shipping - Dimensions (WxHxD, mm) : 184.91 x 1895.09 x 115.06 (mm)
  - Shipping - Weight (kg) : 9.9
  - Shipping - Weight (lb) : 21.83
  - Cord Length : 10 ft (3.0 m)
  - Derated Input Current : 24 A
  - Input Frequency Range : 50 Hz - 60 Hz
  - Input Plug Type : NEMA L6-30P
  - Maximum Input Current : 30A
  - Nominal Input Voltage : 200 - 240 VAC
  - Phase : Single Phase
  - Nominal Output Voltage : 200 - 240 VAC
  - Outlets - # of Banks : 2
  - Outlets - Total : 24
  - Outlet Type COMPUTED : 21 - IEC-320 C13
  - Overload Protection : 20A x 2
  - USB Charge Port : No
  - Environmental Sensor : Optional, via RJ45
  - Hardware Connection Port : Ethernet (RJ45)
  - LCD : Multifunction LCD
  - LED Indicators : Tx/Rx
  - Modular Expandability (Cascading) : Yes, via RJ45
  - Monitoring Level : Input
  - Outlet switching : Yes
  - Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD
  - Software (Free Download) : PowerPanel® Business
  - Upgradeable firmware : Yes
  - Adjustable Mounting Brackets : 1 set
  - Color : Black
  - Cord Retention Tray/Cord Organizers : Yes
  - Form Factors Supported : 0U Vertical Rackmount
  - Material of Construction : Metal
  - Rack Height : 0U
  - Operating Elevation : 0 - 11483 ft (0 - 3500 m)
  - Operating Relative Humidity : 0 - 95 % (non-condensing)
  - Operating Temperature : 32 - 140 °F (0 - 60 °C)
  - Storage Elevation : 0 - 49213 ft (0 - 14999 m)
  - Storage Temperature : 5 - 149 °F (-15 - 65 °C)
  - Environmental : RoHS Compliant
  - Safety : UL 60950-1 : FCC Class A
  - Extended Warranty Option : WEXT5YR-PDU1B
  - Product Warranty : 3 Year Limited Warranty
- Application/Usage
- Data Center
- Network Closet
- Certifications & Standards
- - UL 60950-1
  - FCC Class A
- Energy Star
- No
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- UL Listed
- Yes
